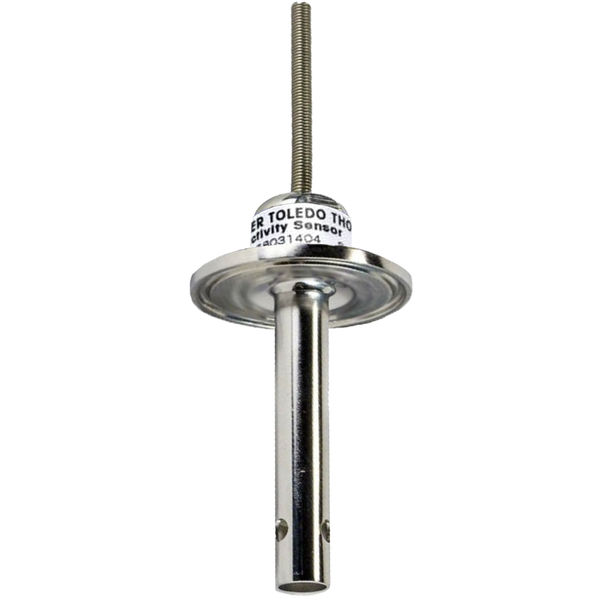

Mettler Toledo 58031223 Cond Sensor 1.5Tri 0.1C SS

Cable: 1.5 ft (0.5 m)

Connector: Standard

Connection: 1½ inch Tri-Clamp

Model Family: Analog

Cell Constant: 0.1 cm-1

Process fitting: 1½" Tri-Clamp

Sensor Material: 316L SS

Fitting material: 316L SS

Insertion length: 86mm

Measurement Range: 0.02 - 2,000 µS/cm

Electrode Material: SS 316L

Temperature Sensor: PT 1000

Material certification: EN10204 3.1 & USP <88> Class VI

Measurement Technology: Conductive

Electrode Configuration: 2-electrode

Cell Constant (accuracy): ± 1%

Hazardous Area Approvals: No

Operating Range (µS/cm): 0.02 – 2,000

Primary Media/Application: Pharmaceutical Waters Pharmaceutical/Life Science Production

Measured Pressure Resistance: 150 psig @ 311 °F and 450 psig @ 77 °F (10 bar @ 155 °C and 31 bar @ 25 °C)

Hygienic/Biocompatibility Approvals: Yes
