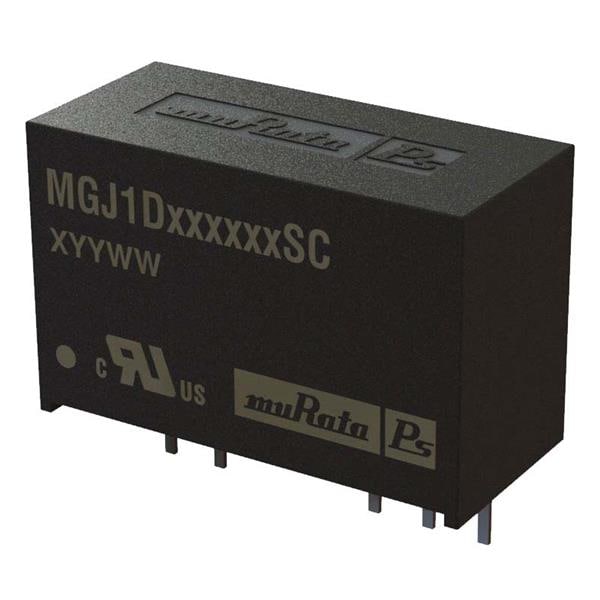

Murata Power Solutions MGJ1D241505SC 絶縁型DC-DCコンバータ 1W TH 24-15/5V 5.2KV SIP

Width: 8.8 mm (0.346 in)

Height: 12.5 mm (0.492 in)

Length: 19.5 mm (0.768 in)

Industry: Industrial

Dimensions: 19.5 mm x 8.8 mm x 12.5 mm

Output Power: 1 W

Input Voltage: 21.6 V to 26.4 V

Mounting Style: Through Hole

Isolation Voltage: 5.2 kV

Number of Outputs: 2 Output

Input Voltage - Max: 26.4 V

Input Voltage - Min: 21.6 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 50 mA

Output Current-Channel 2: 50 mA

Output Voltage-Channel 1: 15 V

Output Voltage-Channel 2: 5 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
