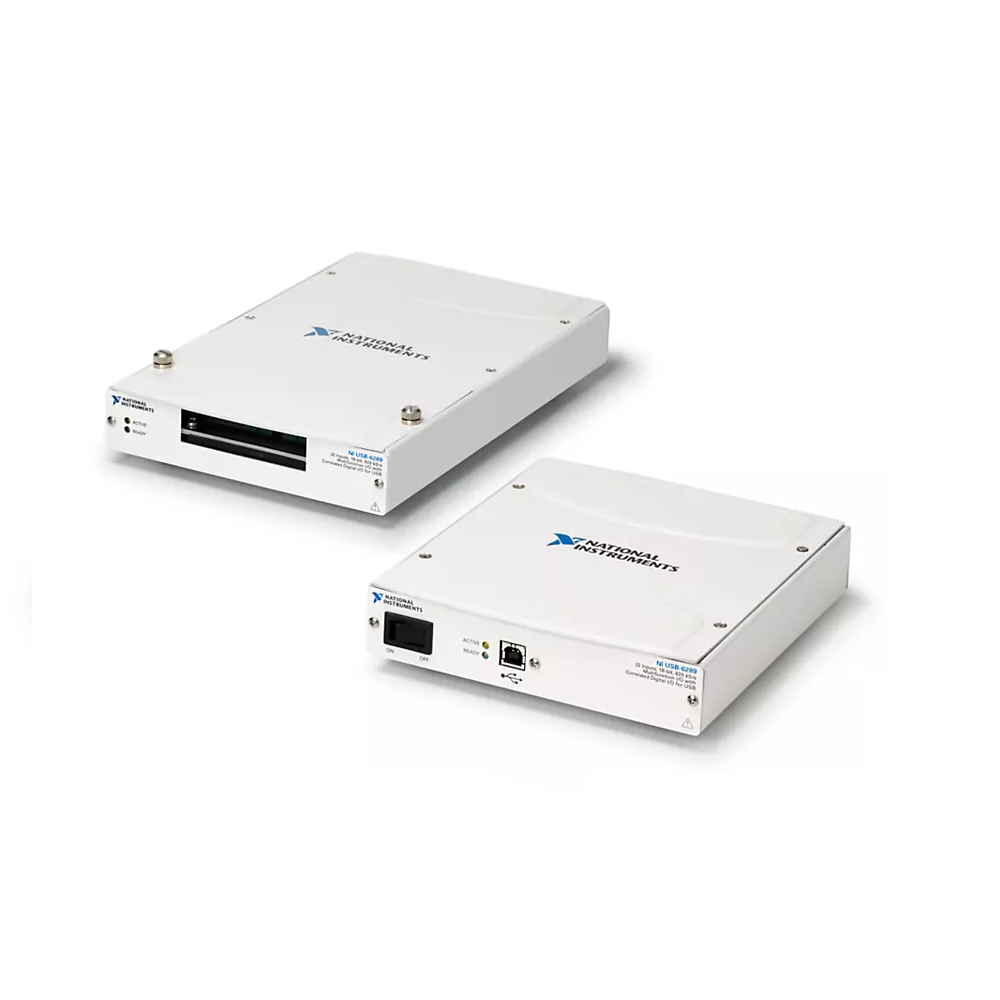

NI USB-6289 Multifunction I/O Device (625 kS/s, 18 bits, 2047 samples, SCSI (qty 2), Support Universal Euro 240VAC)

Enclosed: Yes

Bus Connector: USB 2.0

Maximum Number of Single-Ended Analog Input Channels: 32

Maximum Number of Differential Analog Input Channels: 16

Simultaneous Sampling: No

Maximum Sample Rate: 625 kS/s

Analog Input Resolution: 18 bits

Analog Input Absolute Accuracy: 980 μV

Number of Analog Output Channels: 4

Maximum Update Rate: 2.86 MS/s

Number of Bidirectional Digital Channels: 48

Number of Counters/Timers: 2

Front Connection Type: SCSI (qty 2)

Supported Power Input: Universal Euro 240VAC

Analog Input Isolation: —

Analog Input FIFO Buffer Size: 2047 samples

Provides combinations of analog I/O, digital I/O, and counter/timer functionality in a single device for computer-based systems.

The Multifunction I/O Device features I/O with varying channels, sample rates, output rates, and other features to meet many common measurement requirements. You can use the device for industry applications such as laboratory automation, research, and design verification. The included DAQExpress companion software provides basic measurement and analysis, while the included NI-DAQmx driver provides the ability to create customized automated measurement and control applications. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
