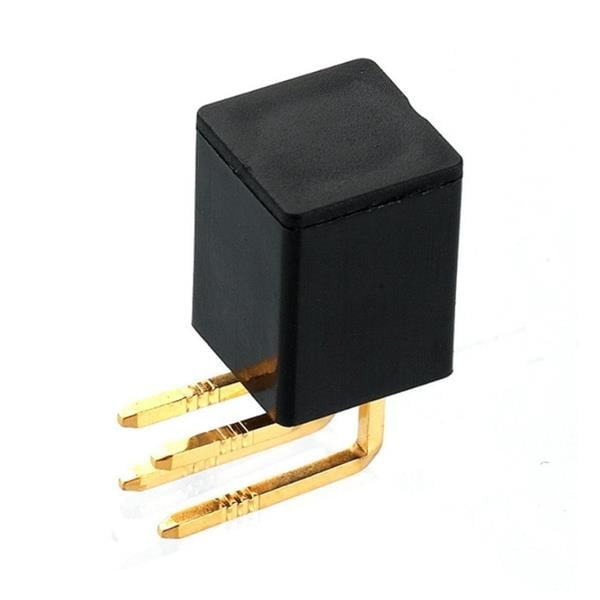

OncQue RBS070410 ティルトスイッチ コンタクトボールセンサー 10mA/5VDC 45度

Life: 100000 Cycle

Width: 6.5 mm

Height: 8.5 mm

Length: 6.5 mm

Illuminated: Non-Illuminated

Unit Weight: 760 mg

Contact Form: SPST

Actuator Type: Rolling Ball

Current Rating: 10 mA

Mounting Style: PCB Mount

Operating Angle: 45 deg

Termination Style: Through Hole

Voltage Rating DC: 5 VDC

Dielectric Strength: 500 VDC

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
