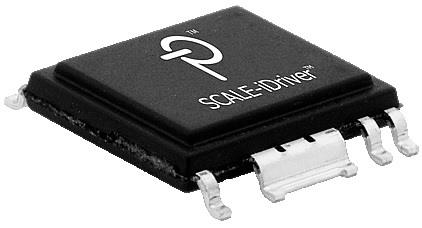

Power Integrations SID1182KQ IGBT、MOSFETゲートドライバー 8A、1200V 75kHz 260ns AEC Q-100

Shutdown: No Shutdown

Fall Time: 460 ns

Rise Time: 465 ns

Logic Type: CMOS

Technology: Si

Configuration: Inverting

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 8 A

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Supply Voltage - Max: 22 V

Supply Voltage - Min: 4.75 V

Pd - Power Dissipation: 1.79 W

Propagation Delay - Max: 364 ns

Operating Supply Current: 16.3 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
