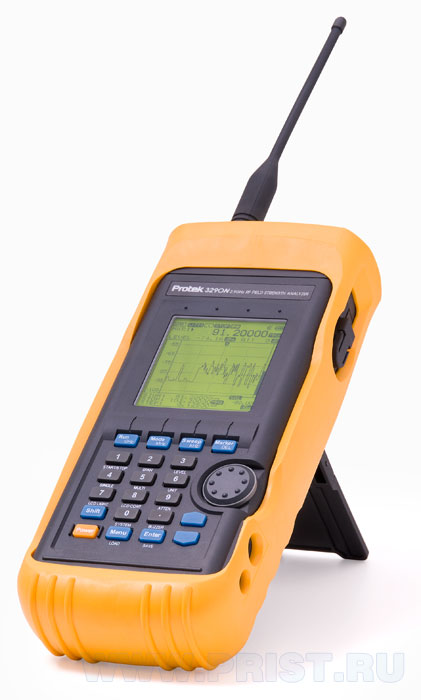

Protek 3290N RF 信号アナライザー

1)Frequency
-Range: 100KHzT to 2900MHz(3290N), 100KHz to 2000MHz(3201N)
- Resolution:3.125 KHz(Multiple of  3.125 KHz)
- Accuracy: TXO:±3PPM,display: ±1.5PPM
- Modulation Bandwith : Wide FM  Apprx 180KHz(-6 dB ),Narrow FM:Apprx 12,5KHz,AM/SSB:Appex 2,4KHz(-6 dB ).
- Step range: 6,25 KHz
- Frequency Selection: Star,stop,center span setup
2)Amplitude
- Measurement Range: -45dBm to -110dBm
-Average Noise Level:Wide FM:- 100dBm,Narrow FM/AM/SSB: -110dBm
- Amplitude Unít: dBm,dBmV,dBuV
- Reference Level Accuracy : Wide FM/AM/SSB Typical:±2dB(20⁰C-30⁰C),Narrow FM Typical:±2dB(20⁰C-30⁰C).
- Reference Level Range: 120dBm ˷ -90dBm
-Log Scale:0.2 dB/div Min,in 0,25 Db Steps( 5 display division)
-Internal Atten:10dB
3)Sweep
-Speed:Min 500m/s
-Trigger Source: FM băng hẹp/FM băng rộng/AM/SSB
- Trigger Mode:Free Run/Single Run/ Continous Wave/Squelch Run
- Trigger Level:TTL level
-Maker Mode:Maker/Delta Maker/ Single power metter/Multi power metter
4)Memory
-Trace storage,setup storage:Max 100 Waveforms and 100 states
5)Display
-Type:Mono STN LCD
-Display Resolution:192X192 pixels
-LCD Backlight:ON/OFF
6)Input
-RF conector:Type N Female,50 Ohms
-Maximum input power:Max +10dBm,5V RMS
7)Frequency
-Range:35MHz-2900MHz(3290N), 35MHz-2000MHz(3201N)
-RF conector:Type BNC Female,50 Ohms
8)General Specification
-Operation Temperature: 0⁰C to 40⁰C
-Humidity:35RH-85RH
- Storage Temperature: 10⁰C-50⁰C
8)Power
-Power Source: AA Type Ni-MH Rechargeable battery x 6pcs
- Power Adaptor:SMPS adaptor AC 12V,car- adaptor DC 12V
-Auto Power:OFF/5min/10min/20min/30min.
9)Demension,Weight
-Demension:102(W) x 229(H) x45(D) (mm)
-Weight:2,2 lmb/700 gram
10)Other
-Speaker:0.5 W into 8 ohms Speaker
-Anten: Dipole Anten(Receive Only)
- RS-232C Interface:9600bps, 19200bps, 38400bps, 57600bps, 115200bps,8 pin,MINI-DIN Conector



1)Frequency
-Range: 100KHzT to 2900MHz(3290N), 100KHz to 2000MHz(3201N)
- Resolution:3.125 KHz(Multiple of  3.125 KHz)
- Accuracy: TXO:±3PPM,display: ±1.5PPM
- Modulation Bandwith : Wide FM  Apprx 180KHz(-6 dB ),Narrow FM:Apprx 12,5KHz,AM/SSB:Appex 2,4KHz(-6 dB ).
- Step range: 6,25 KHz
- Frequency Selection: Star,stop,center span setup
2)Amplitude
- Measurement Range: -45dBm to -110dBm
-Average Noise Level:Wide FM:- 100dBm,Narrow FM/AM/SSB: -110dBm
- Amplitude Unít: dBm,dBmV,dBuV
- Reference Level Accuracy : Wide FM/AM/SSB Typical:±2dB(20⁰C-30⁰C),Narrow FM Typical:±2dB(20⁰C-30⁰C).
- Reference Level Range: 120dBm ˷ -90dBm
-Log Scale:0.2 dB/div Min,in 0,25 Db Steps( 5 display division)
-Internal Atten:10dB
3)Sweep
-Speed:Min 500m/s
-Trigger Source: FM băng hẹp/FM băng rộng/AM/SSB
- Trigger Mode:Free Run/Single Run/ Continous Wave/Squelch Run
- Trigger Level:TTL level
-Maker Mode:Maker/Delta Maker/ Single power metter/Multi power metter
4)Memory
-Trace storage,setup storage:Max 100 Waveforms and 100 states
5)Display
-Type:Mono STN LCD
-Display Resolution:192X192 pixels
-LCD Backlight:ON/OFF
6)Input
-RF conector:Type N Female,50 Ohms
-Maximum input power:Max +10dBm,5V RMS
7)Frequency
-Range:35MHz-2900MHz(3290N), 35MHz-2000MHz(3201N)
-RF conector:Type BNC Female,50 Ohms
8)General Specification
-Operation Temperature: 0⁰C to 40⁰C
-Humidity:35RH-85RH
- Storage Temperature: 10⁰C-50⁰C
8)Power
-Power Source: AA Type Ni-MH Rechargeable battery x 6pcs
- Power Adaptor:SMPS adaptor AC 12V,car- adaptor DC 12V
-Auto Power:OFF/5min/10min/20min/30min.
9)Demension,Weight
-Demension:102(W) x 229(H) x45(D) (mm)
-Weight:2,2 lmb/700 gram
10)Other
-Speaker:0.5 W into 8 ohms Speaker
-Anten: Dipole Anten(Receive Only)
- RS-232C Interface:9600bps, 19200bps, 38400bps, 57600bps, 115200bps,8 pin,MINI-DIN Conector
