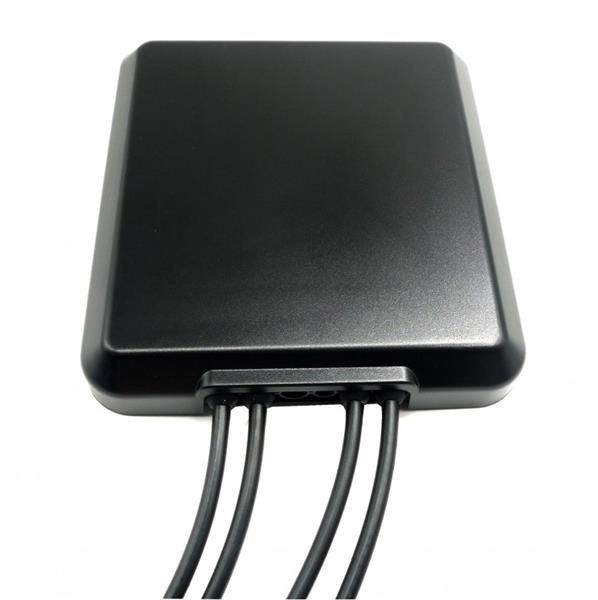

Pulse Electronics LPMB401 MIMOアンテナ 2xLTE 2x2.4&5GHz 4リード

Gain: 4.7 dB, 4.4 dBi

VSWR: 2.5:1, 2

Style: Square

Width: 135 mm

Height: 25 mm

Length: 145 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 3 M LMR195 x 4

Application: Fleet Management, Utility Vans, High Speed Data.

Unit Weight: 607 g

Mounting Style: Adhesive Mount

Number of Bands: 4 Band

Center Frequency: 830 MHz, 2.2 GHz, 2.45 GHz, 5.5 GHz

Mechanical Style: Module

Maximum Frequency: 5.9 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male, RP-SMA Male

Protocol - WiFi - 802.11: WiFi, WLAN, WiMAX

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
