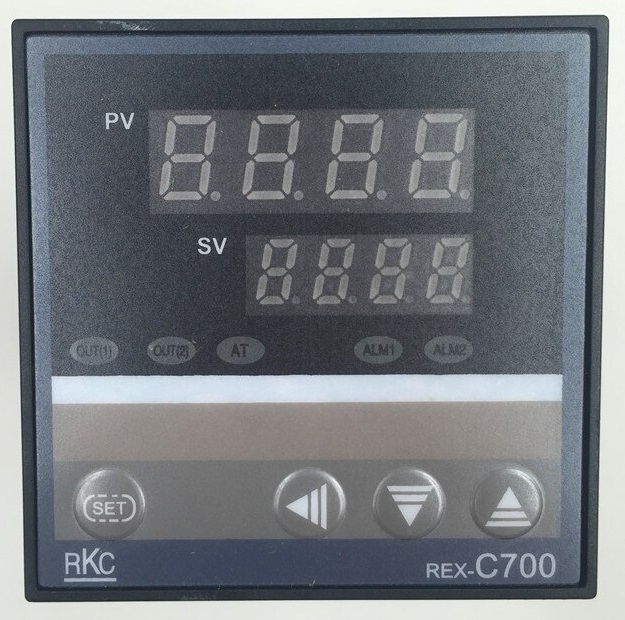

Dimensions: W72 x H72 x D100
Display: Actual value PV: blue, set value SV: orange
Power supply: 100 – 240 VAC 50/60Hz, 24V AC/DC
Thermostat input: K, J, R, S, B, E, T, N, PLII
RTD: Pt100, JPt100
Voltage: 0-5 VDC, 1-5 VDC
Current: 0 to 20 mA DC, 4 to 20 mA DC
Way out
Control output
- Relay: 250VAC 3A 1c
- Pulse: 0/12 V DC
- Current: DC4-20mA (load 600Ω Max.)
- Triac . output
Load voltage: 100 V AC line, 200 V AC
Pure load resistance
Alarm output: 250VAC, 1A.
Sampling cycle: 0.5 s
Control method
ON/OFF, P, PI, or PD
Feature : Heater failure warning
Low or zero current monitoring (heater failure, oscilloscope control device)
Over current or short circuit
Control loop break warning
Set delay, control loop break alarm
Connection type: Bridge
Installation type: Mounted on the cabinet door, screwed on the electrical cabinet
Accessories: Bracket
