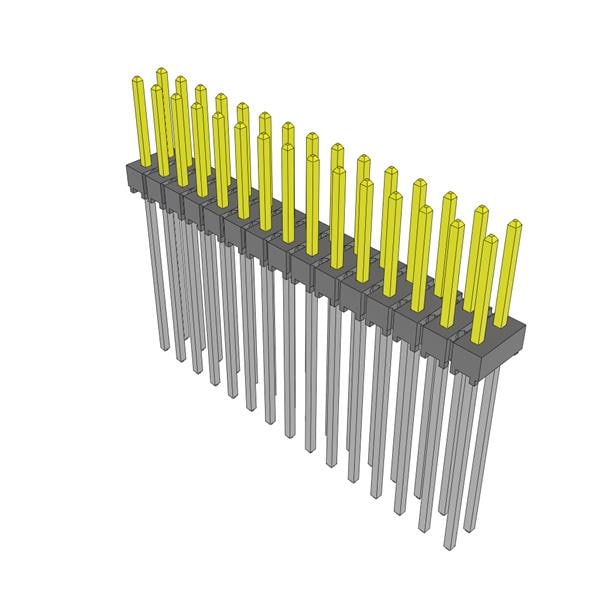

Samtec HTSW-115-30-L-D ピンヘッダー 高温PCBヘッダーストリップ、0.100インチピッチ

Pitch: 2.54 mm (0.1 in)

Application: Board-to-Board, Cable

Housing Color: Natural

Contact Gender: Pin (Male)

Current Rating: 4.3 A, 4.6 A, 5.2 A, 5.7 A, 6.3 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 400 VAC, 450 VAC, 500 VAC, 515 VAC, 550 VAC

Contact Plating: Gold

Contact Material: Phosphor Bronze

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: Solder Pin

Mating Post Length: 8.13 mm (0.32 in)

Flammability Rating: UL 94 V-0

Number of Positions: 30 Position

Termination Post Length: 18.03 mm (0.71 in)

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
