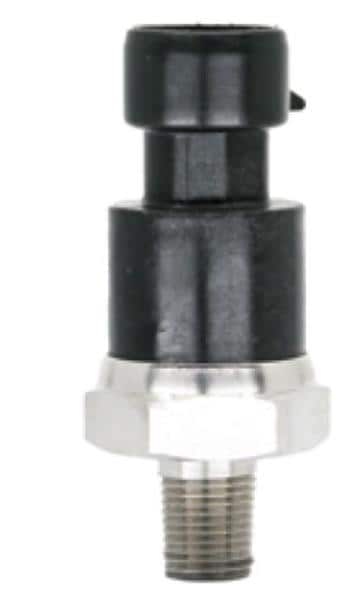

SSI Technologies P52-1500-S-2A-P-5V-000-000 圧力センサー 1500PSIS,5V,1/4-18 NPT,PACKARD

Height: 24.5 mm

Length: 22.22 mm

Accuracy: 0.25 %

IP Rating: IP67, IP68

Port Size: 1/4 in-18 NPT

Pressure Port: Port

Pressure Type: Sealed Gauge

Mounting Style: Panel Mount

Output Voltage: 5 V

Moisture Sensitive: Yes

Operating Pressure: 1500 psi

Supply Voltage - Max: 30 V

Supply Voltage - Min: 8 V

Operating Supply Current: 4 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
