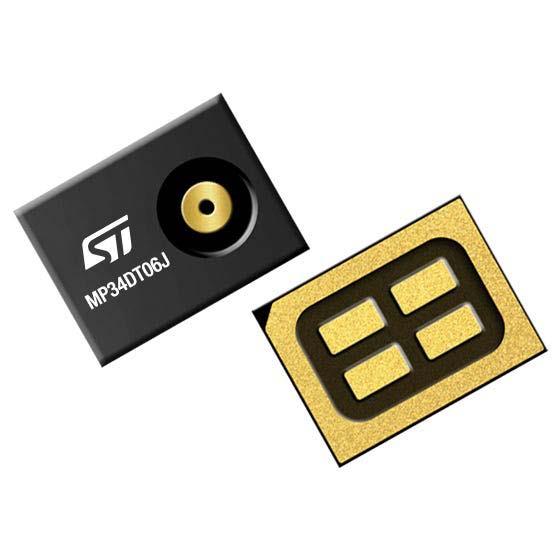

STMicroelectronics MP34DT06JTR MEMSオーディオセンサー MEMSオーディオセンサー 全指向性ステレオデジタルマイクロフォン

Depth: 1 mm

Shape: Rectangular

Width: 4 mm

Length: 3 mm

Port Type: Bottom

Tolerance: 1 dB

Output Type: Digital

Sensitivity: - 26 dB

Unit Weight: 23.800 mg

Mounting Style: SMD/SMT

Frequency Range: 1.2 MHz to 3.25 MHz

Moisture Sensitive: Yes

Sound Pressure Level: 122.5 dB

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.6 V

Directional Properties: Omnidirectional

Operating Supply Current: 650 uA

Operating Supply Voltage: 1.8 V

SNR - Signal to Noise Ratio: 64 dB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
