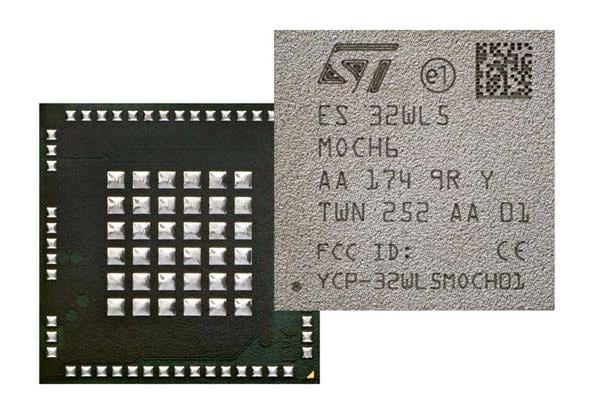

STMicroelectronics STM32WL5MOCH6STR RFマイクロコントローラ - MCU マルチプロトコル LPWAN デュアルコアモジュール 32ビット Arm Cortex-M4/M0+ LoRa

Core: ARM Cortex M0+, ARM Cortex M4

Technology: Si

Data RAM Size: 64 kB

Data RAM Type: SRAM

ADC Resolution: 12 bit

Data Bus Width: 32 bit

Interface Type: I2C

Mounting Style: SMD/SMT

Number of I/Os: 35 I/O

Development Kit: NUCLEO-WL55JC

Number of Timers: 1 x 32 bit, 3 x 16 bit

Processor Series: STM32WL

Moisture Sensitive: Yes

Operating Frequency: 928 MHz

Program Memory Size: 256 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Number of ADC Channels: 16 Channel

Maximum Clock Frequency: 48 MHz

Operating Supply Voltage: 1.8 V to 3.6 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
