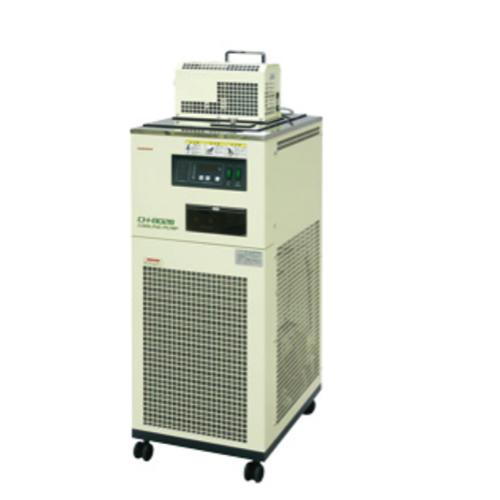

TAITEC CH-802B Cooling Pump (-10℃ ~ +80℃; ±0.5℃; 750W, R404A)

Temperature range  (*1): -10℃ to +80℃

Ambient temperature range: +5℃ to +35℃

Control accuracy  (*2): ±0.5℃ , Heater PID control

Compressor output, Refrigerant: 750W, R404A

Cooling capacity (at 50Hz) (*3): approx. 1.3kW

Heater output: 3kW

Temperature setting display: Digital system  (setting/display switching system)

Safety device/function: Short/Over current breaker, Alarm and warning for compressor, High and Low temperature, Alarm and warning for pump motor, Temperature sensor abnormality diagnosis circuit, Alarm for replenishing liquid, Low-water cut off, Phase-reversal relay

Other Functions: Temperature check monitor, Remote temperature setting, Temperature monitor signal output, Safety device actuation signal output, External temperature sensor connection  (*4)

Water bath capacity  (*5): approx. 26L ( water level 80%)

Applicable pump unit: P-320, P-420, P-520

Dimensions (Pump unit is not included): 407×565×996Hmm

Weight (Pump unit is not included): approx. 75kg

Power Supply (Pump unit is not included): Three-phaseAC200V/20A 50/60Hz,MAX22A: Need a step-down transformer

Operation current (Pump unit is not included): 15A

Standard Accessory: Power cord, Drain hose × 1 pc, Connector for signal × 1 pc, Metal fittings

Catalog

(*1)When setting below +7℃, please be sure to use antifreeze (Please ask us for details).

(*2)Performance may not be maintained due to the heating medium, environmental temperature, heat load, circulation pipe distance, etc.

(*3)Capacity when using tap water and the circulating fluid temperature at 10℃. The capacity varies with the pump unit mounted. The capacity decreases when the ambient temperature is above +30℃.

(*4)External temperature sensor (φ4 × 250 mm) is available as an option.

(*5)Due to the structure not being sealed, the circulation liquid may evaporate and reduce depending on the set temperature and heating medium type.
