Temperature range: ＋10℃ to＋25℃
Control accuracy (*1): ±0.1℃
Cooling capacity [kW] (Circulation temperature at 10℃)(*2): 25
Compressor output, Refrigerant: 4.5kW, R410A
Pumping capacity (50/60kHz)(*3):
Max. discharge pressure [MPa]:0.59
Flow rate [L/min]: 42/55
Motor output [kW]:0.75
Safety device/function: Short/Over current breaker, Warning and Cut off for low water, Pump overcurrent, Water temperature abnormal, Warning indicator lamp
Water bath capacity (at 80% water level): 230L
Connecting pipe diameter (Circulating fluid in/out): Rc1-1/4
Dimensions:

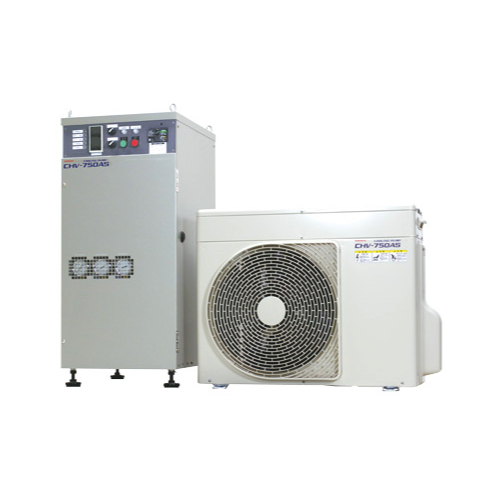

Indoor unit [W×D×H mm]: 687×922×1657
Outdoor unit [W×D×H mm]: 1196×442×1563
Weight:
Indoor unit: 160kg
Outdoor unit: 186kg
Power Supply (three phase AC200V, 50/60Hz) (*4): 60A
Operation current: 42A
Catalog
(*1)Performance may not be maintained due to environmental temperature, heat load, circulation pipe distance, etc. When the thermal load becomes below approx. 30% of the cooling capacity, the control accuracy changes to ±2.0℃ due to the compressor On-Off control.
(*2)Capacity when the ambient temperature at below +30℃.
(*3)Capacity when using tap water. Flow rate when the discharge pressure at 0.3 MPa.
(*4)The sensitivity current in ELCB should be set larger than 30 mA.
•The cooling capacity may not be maintained if the unit is placed in direct sunlight and hindrance of exhausting.
•There is a distance limit between the indoor unit and outdoor unit, so please contact us for more information.
•Standard products cannot use pure water as circulating fluid.
•Please ask us when mixing chemicals for water treatment to circulating fluid.
•The fee for Delivery, Installing, Piping work, and Wiring work are quoted separately.
