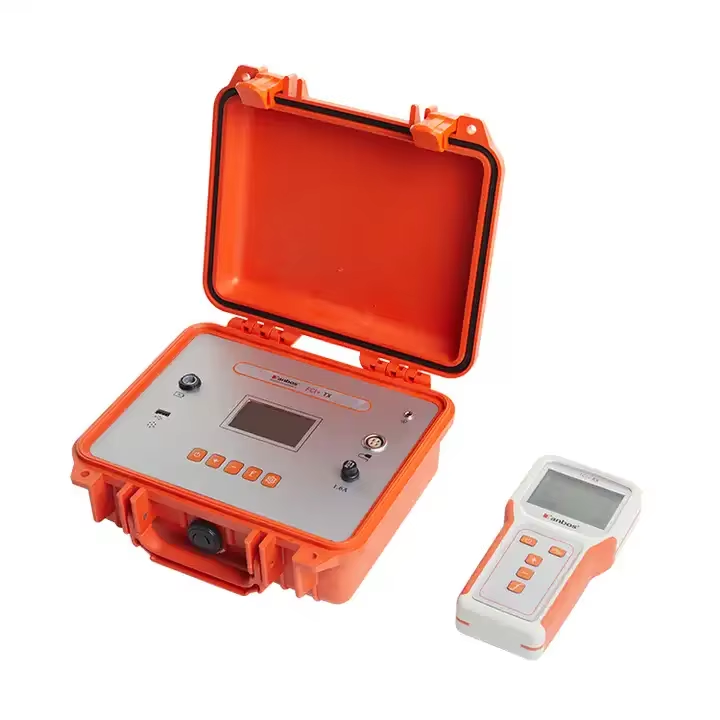

Tanbos FCI+ Cable Identifier For Energised Cables

Transmitter:

Output Power: 3 gears, max output 10W

Output frequency: 982Hz、9.82kHz

Output voltage: 0—55V Self-adjusting

Short circuit current: 686mA

Output mode: Coupling, direct connection

Screen: 3.5” LCD screen

Display: Output gear, mode, power, frequency, voltage, current

Output mode: Direct connection method and clamp method

Power supply: Built-in lithium battery

Working time: 4h—6h Depends on the output method

Material: ABS Engineering Materials

Weight: 1.5kg

Receive frequency: 982Hz、9820Hz

Induction method: Full magnetic domain induction

Current range: 0.1—1000mA 1280Hz、640Hz;   0.1—1000A50Hz

Screen: 5.0” Color light-sensitive LCD

Display: Signal strength, phase, power, target cable, etc

Identification method: Frequency, phase and signal strength locks

Phase display: Digital degree display

Induction coil: High sensitivity coupling waterproof flexible pliers

Gain: Fully automatic adaptive gain

Coil inner diameter: 195mm

Power supply: Lithium battery

Working time: 9h

Material: ABS Engineering Materials

Weight: 0.8kg
