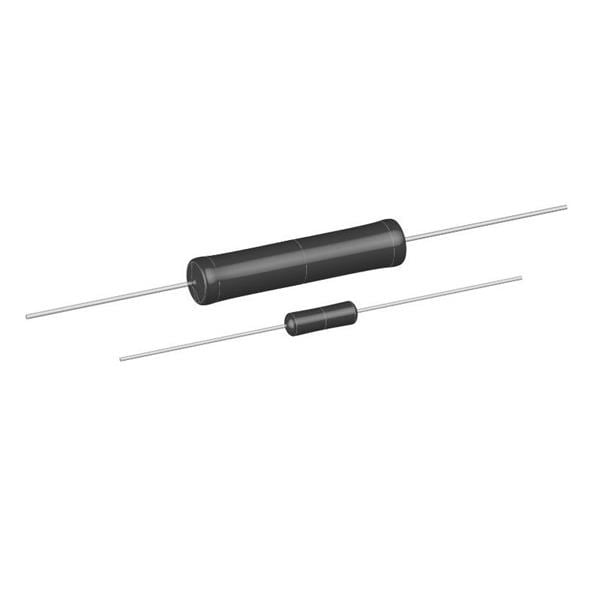

Vishay Dale RS02C21R00FE70 ワイヤー巻抵抗器、工業用、精密電力、シリコンコーティング、軸方向リード RS-2C 21 1% E70 e3

Width: 5.5 mm

Length: 15.1 mm

Tolerance: 1 %

Resistance: 21 Ohms

Technology: Wirewound

Unit Weight: 1.600 g

Power Rating: 2.5 W

Lead Diameter: 1.02 mm

Mounting Style: PCB Mount

Termination Style: Axial

Temperature Coefficient: 20 PPM / C

Operating Temperature Range: - 65 C to + 250 C

Maximum Operating Temperature: + 250 C

Minimum Operating Temperature: - 65 C
