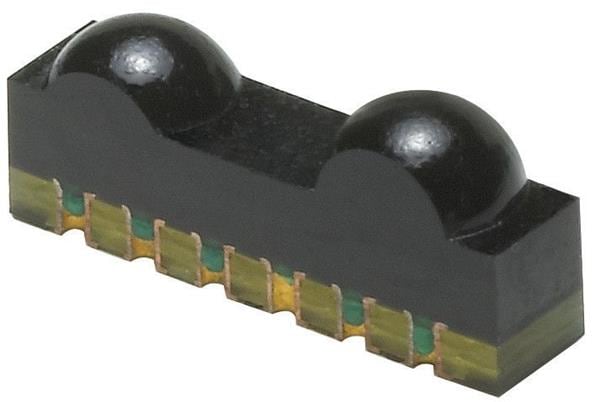

Vishay General Semiconductor TFBS4652-TT1 IRトランシーバー IRDAモジュール SIRトランシーバー 1.6mm

Fall Time: 100 ns

Rise Time: 100 ns

Dimensions: 6.8 mm x 2.8 mm x 1.6 mm

Wavelength: 886 nm

Pulse Width: 2.9 us, 1.7 us

Unit Weight: 248.670 mg

Mounting Style: SMD/SMT

Radiant Intensity: 65 mW/sr

Moisture Sensitive: Yes

If - Forward Current: 300 mA

Transmission Distance: 50 cm

Data Transmission Rate: 115.2 kb/s

Pd - Power Dissipation: 250 mW

Operating Supply Voltage: 2.4 V to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
