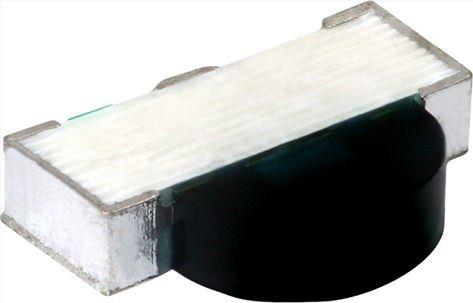

Vishay General Semiconductor VEMD11940FX01 PINフォトダイオード サイドビュー 780-1050nm +/-75度

Width: 2 mm

Height: 0.6 mm

Length: 3 mm

Fall Time: 1000 ns

Rise Time: 1000 ns

Unit Weight: 42.124 mg

Dark Current: 1 nA

Photocurrent: 1.8 uA

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Peak Wavelength: 950 nm

Moisture Sensitive: Yes

If - Forward Current: 50 mA

Vf - Forward Voltage: 1.7 V

Vr - Reverse Voltage: 60 V

Pd - Power Dissipation: 104 mW

Half Intensity Angle Degrees: 150 deg

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
