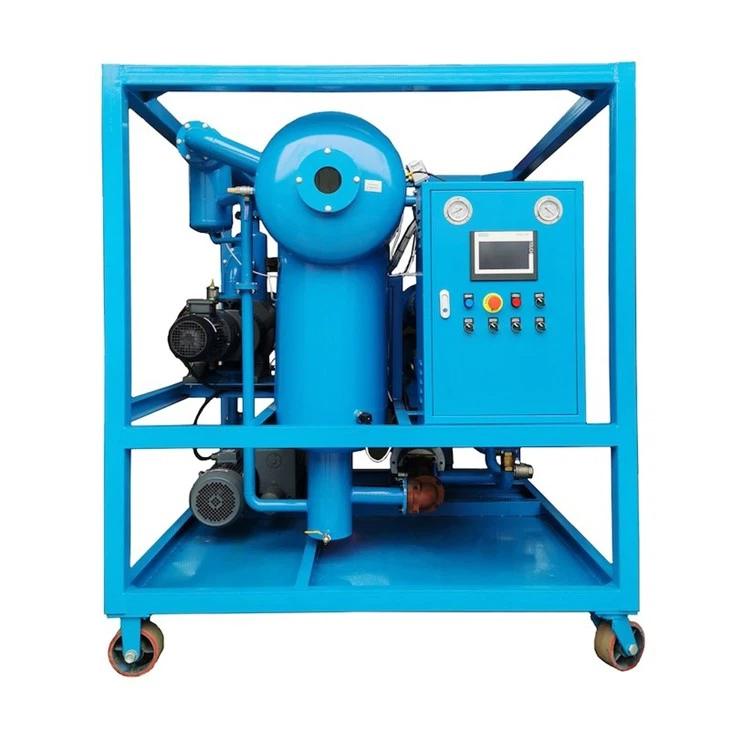

Wrindu ZYD-100 Transformer Oil Purifier (Flow Rate (Liter/hour): 6000)

Flow Rate(Liter/hour): 6000

Recommended Max oil volume in one storage tank(Tons): 24

Relative Working Vacuum Degree(MPa): -0.08 ～ -0.099 MPa

Absolute Operating Vacuum Level(Pa): ≤ 8 Pa

Working Discharge Pressure(MPa): ≤ 0.5

Temperature Control(°C): 0 ～ 100

Operation oil Temperature in Treatment(°C): 30 ~ 80

Power Supply: AC 3~, 380 V, 50Hz, 4 Wire

Working without Trouble (H): 4000

Ambient Temperature(°C): -25 ～ 55

Working noise dB(A): 65 ~ 85

Cooling Method: Air Cooling

Heating power(KW): 90

Total power(KW): 105

Inlet/outlet caliber(mm): φ50

Weight(Kg): 1200

Size(LxWxH): 1800x1560x2080
