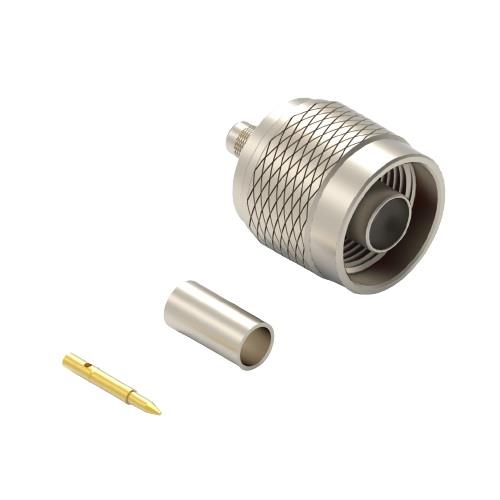

Wurth Elektronik 60446022210121 ケーブルコネクタ WR-NTYPE ケーブルコネクタ ストレートプラグ はんだ付け・圧着 RG58/141/LL195

Gender: Plug (Pin)

Polarity: Standard

Frequency: DC to 6 GHz

Impedance: 50 Ohms

RF Series: N Type

Body Style: Straight

Body Finish: Nickel

Orientation: Straight

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500 Cycles

Insertion Loss: 0.2 dB

Mounting Style: Cable Mount / Free Hanging

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 6 GHz

Minimum Frequency: DC

Termination Style: Twist On

Coupling Mechanism: Threaded

Contact Termination: Crimp

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
