BAUR KSG 200 TA ケーブル識別システム (300 V, Max. 180 A)

For cable identification on live cables

Pulse Voltage: 300 V

Pulse Current: Max. 180 A

Pulse Sequence: 15 pulses/min

Power Supply

External supply: DC 12 V

Rechargeable battery: NiMH rechargeable battery 12 V

Protection class: Not applicable in battery operation

Degree of Protection: IP40

Voltage-proof output: Max. 400 V, 50/60 Hz

Measurement category: CAT IV/600 V, Nominal DC or ACrms (line-to-neutral): 600 V

NiMH Rechargeable Battery

Battery Type: NiMH rechargeable battery 12 V (10 cells); 4.2 – 5 Ah

Battery Life: Approx. 2.5 – 3.5 hours

Charging Time: Approx. 4.5 – 5 hours

Charger

Power Supply: 100 – 240 V, 50/60 Hz

Output Voltage: DC 10.5 – 20 V, 1 A

General Information on Cable Identification Systems in the KSG 200 Series

Ambient Temperature (Operation): -10°C to +55°C

Storage Temperature: -20°C to +50°C

Case Dimensions (W x H x D): Approx. 594 x 174 x 435 mm

Weight of Case With Transmitter and Receiver:

Approx. 6.2 kg (without battery)

Approx. 7.7 kg (with battery)

Safety and EMC:

CE Compliant in Accordance with:

Low Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

Environmental Testing EN 60068-2-ff

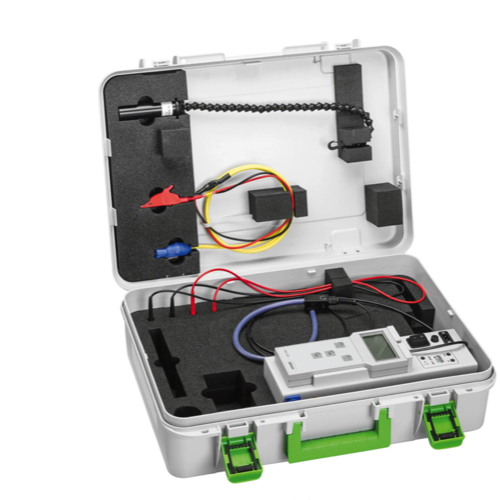

Standard delivery

Transmitter KSG 200 TA with integrated rechargeable battery

Receiver KSG 200 T

with flexcoupler ø 150 mm

with flexcoupler ø 250 mm: Option

Connection cable 2 m, with connection clips

Connection set to connect to live LV cables

Flexible rod, fully insulated (for applying the flexcoupler to live cables)

Charger incl. country-specific adapter

Vehicle charge cable

Transport case for all components

User manual

Options

Clip-on current transformer AZ 10/D 70: Options

Clip-on current transformer AZ 10/D 80: Option

Clip-on current transformer AZ 10/D 125: Option
