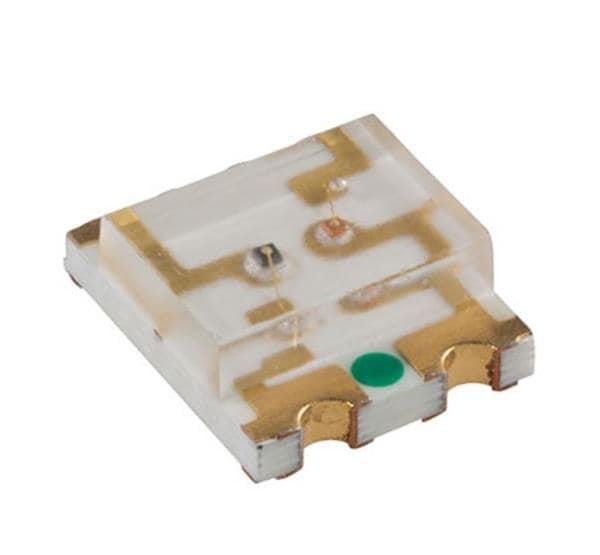

BIVAR SM1210BC Multi-Color LEDs Bi-Color HE Red/Grn Water Clear
生産者: BIVAR Model: SM1210BC - 連絡先
Width: 2.7 mm
Height: 1.1 mm
Length: 3.2 mm
Lens Color: Colorless
Lens Shape: Rectangular
Unit Weight: 292 mg
Power Rating: 78 mW, 78 mW
Viewing Angle: 130 deg
Mounting Style: SMD/SMT
Lens Dimensions: 2 mm x 2.7 mm
Lens Transparency: Water Clear
Illumination Color: Red, Green
Luminous Intensity: 22.5 mcd, 11.5 mcd
Moisture Sensitive: Yes
If - Forward Current: 20 mA
Vf - Forward Voltage: 2 V, 2.1 V
Vr - Reverse Voltage: 5 V
Wavelength/Color Temperature: 640 nm, 570 nm
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 40 C
