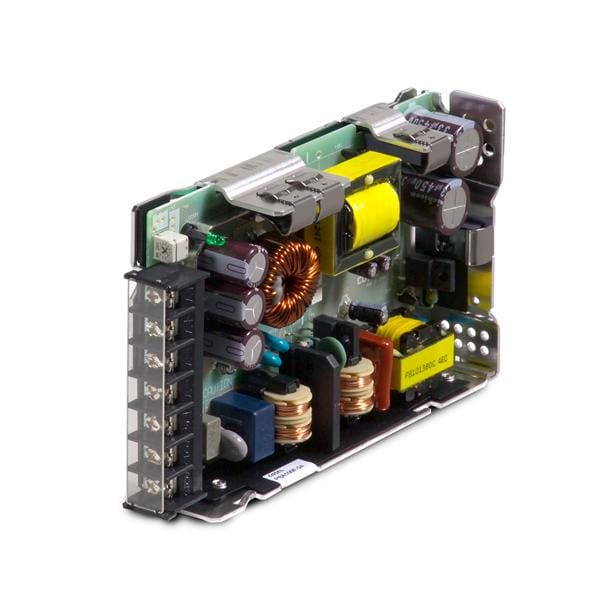

Cosel PBA100F-3R3-T Switching Power Supplies 100W 3.3V 20A Vertical Term Block

Width: 93.98 mm (3.7 in)

Height: 33.02 mm (1.3 in)

Length: 160.02 mm (6.3 in)

Industry: Industrial

Efficiency: 79 %

Unit Weight: 440 g

Output Power: 66 W

Input Voltage: 85 VAC to 264 VAC, 120 VDC to 370 VDC

Cooling Method: Convection

Mounting Style: Chassis

Input Frequency: 50 Hz/60 Hz

Load Regulation: Regulated

Mechanical Style: Open / Enclosed Frame

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Power - Convection: 100 W

Input Voltage - Max: 264 VAC, 370 VDC

Input Voltage - Min: 85 VAC, 120 VDC

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 20 A

Output Voltage-Channel 1: 3.3 VDC

Operating Temperature Range: - 10 C to + 71 C

Maximum Operating Temperature: + 71 C

Minimum Operating Temperature: - 10 C
