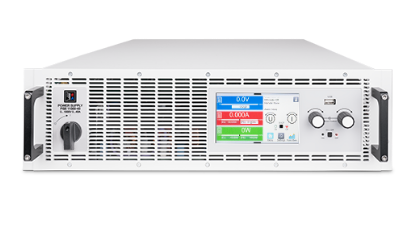

EA Elektro-Automatik PSI 91500-30 3U プログラマブル高効率 DC 電源 (400V model; 1500V; 30A; 15000W)
生産者: EA Elektro-Automatik Model: PSI 91500-30 3U P/N: 06238369 - 連絡先
Rated voltage & range : 0...1500 V
Voltage ripple (*1) : ≤2400 mVPP / ≤400 mVRMS
Insulation (DC- to PE) : 400 V model: ±1000 V
Insulation (DC+ to PE) : 400 V model: ±1800 V
Rated current & range : 0...30 A
Current ripple (*1) : ≤26 mARMS
Rated power & range : 0...15000 W
Efficiency : ≈ 95%
Weight (*2) : ≈ 31 kg (68.3 lb)
AC: Supply
+ Voltage / Phases
400 V models: 340...460 V, 2ph/3p
+ Frequency: 45...66 Hz
+ Power factor : >0.99
(*1) RMS value: measured at LF with BWL 300 kHz, PP value: measured at HF with BWL 20MHz
