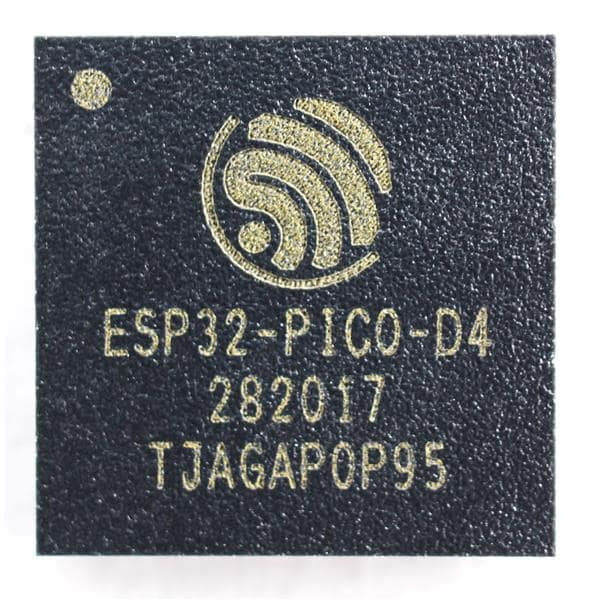

Espressif Systems ESP32-PICO-D4 Bluetooth, Wi-Fi SIP module ESP32 with 4MByte Flash, Dual Core MCU, Wi-Fi & Bluetooth Combo, LGA48-pin, 7*7mm
生産者: Espressif Systems Model: ESP32-PICO-D4 - 連絡先
Core: LX6
Width: 7 mm
Height: 0.94 mm
Length: 7 mm
Technology: Si
Sensitivity: - 97 dBm
Unit Weight: 1.479 g
Output Power: 20 dBm
Data RAM Size: 520 kB
Data RAM Type: SRAM
ADC Resolution: 12 bit
Data Bus Width: 32 bit
Interface Type: I2C, I2S, JTAG, SPI, UART
Mounting Style: SMD/SMT
Maximum Data Rate: 150 Mbps
Moisture Sensitive: Yes
Operating Frequency: 2.4 GHz
Program Memory Size: 4 MB
Program Memory Type: Flash
Supply Voltage - Max: 3.6 V
Supply Voltage - Min: 3 V
Number of ADC Channels: 10 Channel
Maximum Clock Frequency: 40 MHz
Supply Current Receiving: 80 mA
Supply Current Transmitting: 500 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
