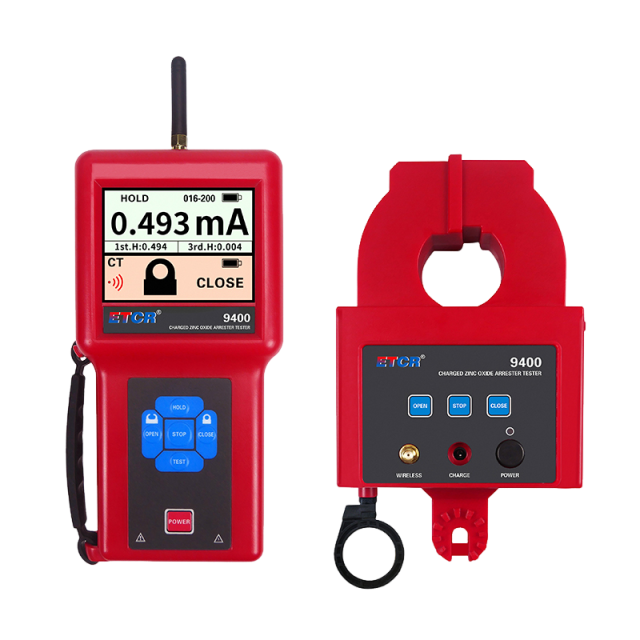

ETCR ETCR9400 酸化亜鉛避雷器クランプライブテスター (0.000mA~300mA, Φ40mm, 30m, 200 groups)

Power Supply

Host: DC 7.4V 2000mAh rechargeable battery, full charge about 8.4V

Detector: DC 7.4V 2600mAh rechargeable battery, full charge about 8.4V

Test Mode: Clamp CT

Measurement Range: AC 0.000mA~300.0mA (Ture RMS)

Resolution: 1uA

Accuracy: ±1%±5dgt (23℃±5℃, below 80%RH)

Harmonic current: the third harmonic current

Communication Mode: 433MHz wireless communication

Communication Distance: 30m

Display Mode: 3.5 inch color screen; Display area: 71mmX53mm

Meter Size:

Master: 195mmX100mmX45mm;

Detector: 208mmX131mmX90mm

Meter Weight:

Master: 400g;

Detector: 1236g;

Total Weight: 7400g (including insulation rod and case)

CT Size: φ40mm

Sampling Rate: 2 times/second

Data Storage: 200 groups,display “HOLD” symbol in storage process

Data Hold: In test mode, press HOLD key to hold data and store data, "HOLD" symbol is displayed, and then press HOLDkey tocancel.

Data Access: “READ”symbol is displayed, can browse all stored data

Overflow Display: Over range overflow function: ”OL” symbol is displayed

Automatic Shutdown: About 10 minutes after power on, the meter shuts down automatically to reduce battery consumption. Battery Voltage: When the battery power is low, the battery voltage low symbol is displayed to remind the meter need to charged

USB Interface: The master equip with USB interface, can upload the stored data to computer

Line Voltage: Below 35kV

Insulation Rod Dimension: 4 section of touch-tone stretch insulation rod (stretch state 5m, closed state 1.5m, rod diameter Φ44mm)

Working Temperature: -20℃~40℃; below 80%RH

Accessories: Master: 1PCS; Detector: 1PCS; Telescopic insulation rod: 1PCS; Emergency pull ring: 1PCS; Charger: 2PCS; USBcommunication cable: 1PCS
