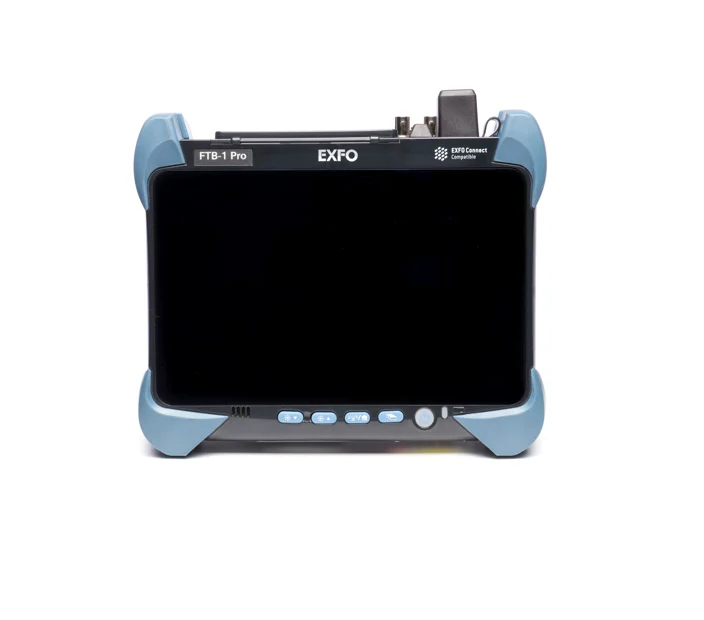

EXFO FTB-1v2 Pro 光ファイバーOTDR測定器

TECHNICAL SPECIFICATIONS

Mainframe: Quad-core processor / 8 GB RAM

Operating system: Windows 10 IoT Enterprise LTSC 2021

Display: Touchscreen, color, 1280 × 800 TFT 203 mm (8 in)

Interfaces: RJ45 LAN 10/100/1000 Mbit/s; USB 2.0 ports (2); USB 3.0 port (1); Micro SD card slot; 3.5 mm headset/microphone port

Storage (internal flash memory): 128 GB

Battery Rechargeable: Li-ion smart battery (Two batteries with the high-power dual carrier)

Power supply: AC/DC adapter, input: 100 – 240 V; 50/60 Hz; 2.5 A max, output: 24 V; 3.75 A

With high-power dual carrier: AC/DC adapter, input: 100 – 240 V; 50/60 Hz; 5.0 A max, output: 24 V; 13.75 A

GENERAL SPECIFICATIONS

Size (H × W × D)

+ With single-depth module back / With single carrier: 210 mm × 254 mm × 66 mm (8 ¼ in × 10 in × 2 ⅝ in)

+ With double-depth module back / With dual carrier: 210 mm × 254 mm × 96 mm (8 ¼ in × 10 in × 3 ⅞ in)

+ With high-power dual carrier: 210 mm × 254 mm × 122 mm (8 ¼ in × 10 in × 4 ¾ in)

Weight (with battery):1.5 kg (3.3 lb)

+ With single carrier: 2.0 kg (4.3 lb)

+ With dual carrier: 2.4 kg (5.2 lb)

+ With high-power dual carrier: 3.2 kg (7.1 lb)

Temperature

+ Operating: 0 °C to 50 °C (32 °F to 122 °F)

+ Storage: –40 °C to 70 °C (–40 °F to 158 °F) b

Relative humidity: 0 % to 95 % non-condensing
