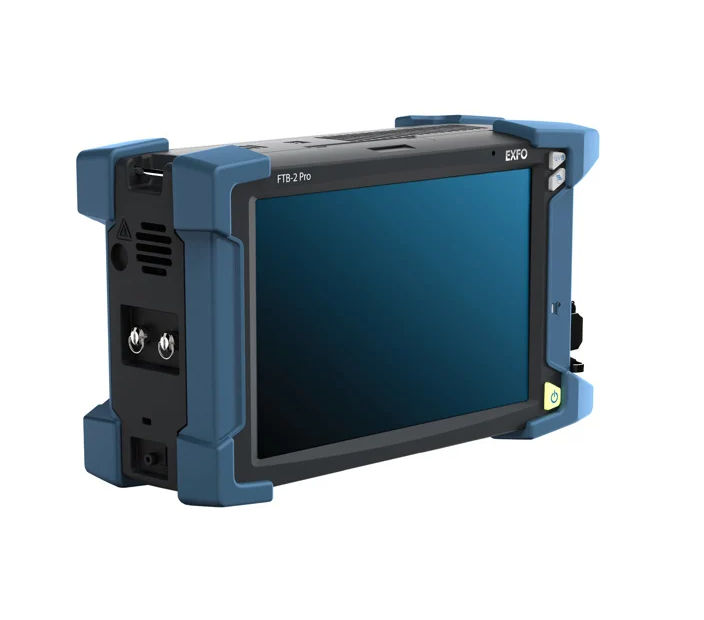

EXFO FTB-2 PRO 光ファイバーOTDR測定器 (24 V; 8.33 A)

TECHNICAL SPECIFICATIONS

Mainframe: Quad-core processor / 4 GB RAM / Windows 10

Display : Touchscreen, color, 1280 × 800 TFT 256 mm (10.1 in)

Interfaces : RJ45 LAN 10/100/1000 Mbit/s; USB 2.0 ports (2); USB 3.0 port (1); Display port; Headset jack

Storage (internal flash memory) : 128 GB

Battery : Two rechargeable Li-ion smart batteries

Power supply : AC/DC adapter, input: 100 – 240 V; 50/60 Hz; 4.0 A max, output: 24 V; 8.33 A

GENERAL SPECIFICATIONS

Size (H x W x D) : 199 mm × 333 mm × 119 mm (7 13/16 in × 13 1/8 in × 4 11/16 in)

Weight : 3 kg (6.6 lb)

Temperature

Operating: 0 °C to 50 °C (32 °F to 122 °F)

Storage: –40 °C to 60 °C (–40 °F to 140 °F)

Relative humidity: ≤95 % non-condensing
