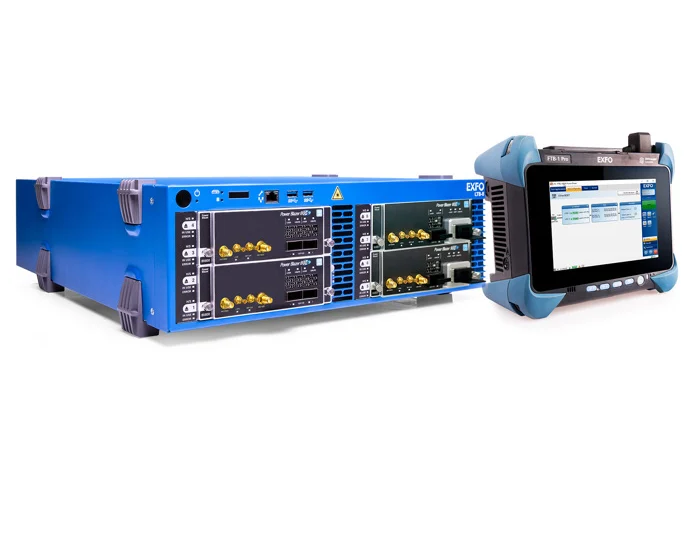

EXFO FTBx-88800 伝送試験モジュール（ラボ用）

MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS

Weight: 0.85 kg (1.87 lb)

Size (H x W x D) 51 mm x 159 mm x 182 mm ( 2 in x 6 1/4 in x 7 3/16 in )

Temperature:

Operating: 0 °C to 40 °C (32 °F to 104 °F)

Storage: –40 °C to 70 °C (–40 °F to 158 °F)

SUMMARY OF KEY FEATURES

Compliance testing: IEEE 802.3ba, IEEE 802.3bs and 802.3df standards

Interface support: QSFP-DD MSA revision 4.0, OSFP MSA revision 2.0, 2 x 400G and 8 x 100G

Line rate: 425/106.25 (single lambda)

Physical-layer validation

+ PCS lane mapping and monitoring capability

+ Per-lane skew generation and measurement

+ PCS error generation and monitoring per lane

+ Full MDIO/I2C read/write access

Transceiver validation: QSFP-DD800, OSFP800

Power measurement per lane: Optical channel power measurement with color indicators

Frequency measurements: Provides per lane frequency measurement of the received signal (in Hz)

Frequency offset: Offsetting of the transmitted signal's clock on a selected interface, and monitoring

BERT: BERT framed and unframed testing using different parameters different frame sizes, including EMIX

Service disruption time (SDT): Service disruption time measurements based on no-traffic mode, with statistics including longest disruption time, shortest, last, average, count, total and pass/fail thresholds

Error injection mode: Manual, rate and continuous (maximum rate)

Layer 2 MAC address and Ether type edition available: Q-in-Q capability with the ability to go up to three layers of stacked VLANs

Rx frame-size analysis: 64, 65 - 127, 128 - 255, 256 - 511, 512 - 1023, 1024-1518 and > 1518

Rx rate: Line utilization (%), Ethernet bandwidth (Mbit/s), frame rate (frame/s), and frame count

Ethernet alarms: Link down, local fault detected, local fault received, remote fault, LOA

Ethernet errors: FCS, jabber, runt, undersize and oversize

PCS lane alarms and errors: LOS, LOC-lane, LOAML, excessive skew, Inv. Marker, Pre-FEC SYMB and Pre-FEC-bit

PCS logical lane mapping: Manual and random

Pre-emphasis: Pre-/main-/post- cursor options to improve electrical waveform including gray encoding

FEC: Generation and analysis of FEC correctable and uncorrectable errors, local and remote degraded SER monitoring (error-free and uncorrectable) and percentage

FEC statistics: Number of symbol errors per correctable codeword, number of pre-FEC symbol errors and bit statistics, codeword count

Remote access: Supported via EXFO Remote ToolBox, Remote Desktop, VNC and EXFO Multilink for multiuser support

Automation: Wide range of commands available per application to allow test automation

Reporting: Test results are included in a report that can be generated in different formats: pdf, html and json
