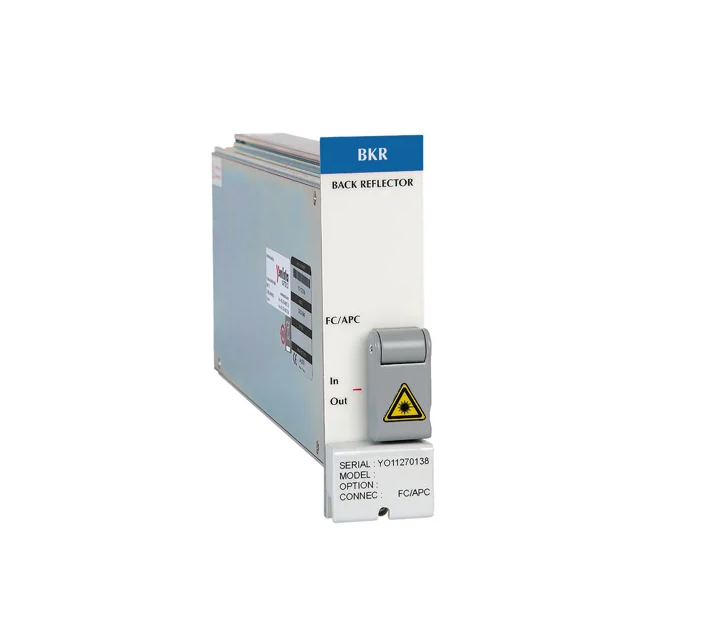

EXFO OSICS BKR 可変光減衰器 (SMF: 1250 nm ~ 1650 nm, PMF: 1240 nm ~ 1520 nm)
生産者: EXFO Model: OSICS BKR - 連絡先
Wavelength range: 1250 nm to 1650 nm on SMF ; 1240 nm to 1520 nm on PMF
Reflectance range: Up to 55 dB
Calibrated range: Up to 40 dB at 1310 nm and 1550 nm
Reflectance accuracy (typ.) : ±0.3 dB
Insertion loss (IL): ≤ 4 dB (3 dB typ.)
Reflection setting resolution : 0.1 dB (Display resolution: 0.01 dB)
Polarization-dependent loss: 0.2 dB
Speed: 0.1 second / 3 dB (typ.)
Maximum input power: 0.2 W (23 dBm)
Optical connectors: FC-APC on SMF-28; FC-APC on PMF PM13
