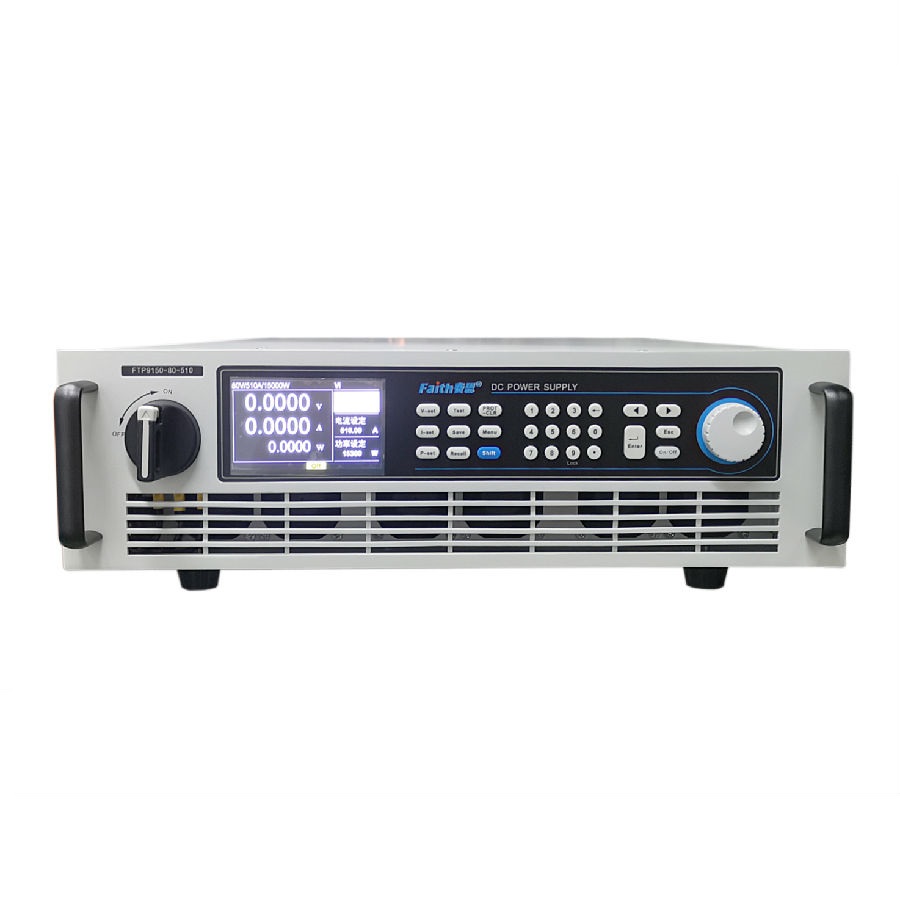

Faith FTP9150-1500-30 高出力プログラマブル DC 電源 (1500V, 30A, 15kW)
生産者: Faith Model: FTP9150-1500-30 - 連絡先
Voltage: 0～1500V
Current: 0～30A
Power: 0～15kW
Size (W x H x D): 482.6mm x 132.5mm x 702.0mm, includes output protection cover
Weight: 30kg
Voltage rise slew rate
Maximum slew rate: 6000V/s
Voltage fall time
No load: ＜2s
Full load: ≤30ms
Transient response: Typical 2ms
Parallel: Parallel up to 10 identical units through master-slave mode for max 1800W output
Protection: OVP, OCP, OPP, OTP, LVP etc..
Interface: Standard LAN, USB(serial) (optional GPIB, CAN, RS485)
Protocol: SCPI, MODBUS, CAN-Open protocols
Input characteristics
Input voltage: 340VAC～460VAC, 47Hz～63Hz
Power factor: 0.99 (Typical)
Efficiency: ＞93% (Typical)
Operation environment
Working temp: 0℃～40℃
Storage temp: -20℃～70℃
Altitude: ＜2000m
Cooling: Air cooling
