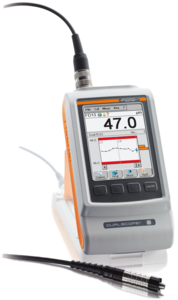

FISCHER DUALSCOPE FMP100 膜厚計
生産者: FISCHER Model: DUALSCOPE FMP100 P/N: 604-140 - 連絡先
• Wide range of measuring probes incl. many special probes for precise execution of various layer thickness measuring tasks
• Maximum flexibility, thanks to the magnetic-inductive measuring method according to DIN EN ISO 2178 and the eddy current testing according to DIN EN ISO 2360;
• Coating thickness measurements according to standards, with special modes for IMO PSPC, SSPC-PA2, QUALANOD or QUALICOAT
• Probes and base materials automatically recognized by the measuring device
• Detailed display of measurement patterns and inspection plans on the high-resolution graphical touchscreen
• Extensive evaluation and statistics functions with supporting graphical presentation options
• Large memory for several thousand measuring applications with different calibrations
• Windows CE operating system enables intuitive operation via graphical user interface and user-definable file-and-folder structure
• Optionally available: Fischer DataCenter software for individual creation of test plans
• USB connection to PC and printer port
Get maximum flexibility in coating thickness measurement while simultaneously meeting the highest demands in precision and accuracy: You can, with the DUALSCOPE® FMP100 coating thickness gauges from Fischer! They combine the magnetic-inductive measuring method and the eddy current testing method into one coating thickness gauge, so you can measure coating thicknesses on both steel and non-ferrous metals without changing instruments. The DUALSCOPE FMP100 and DUALSCOPE H FMP150 gauges are ideal for the most advanced measurement applications in quality assurance.
The DUALSCOPE FMP100 uses both the magnetic induction method (DIN EN ISO 2178) and the eddy current method (DIN EN ISO 2360). It can measure the following coating/substrate systems:
• Non-magnetisable coatings on iron and steel (F)
• Insulation coatings on nonferrous metals (NF)
• Duplex coatings (paint/hot-dip galvanised coatings) on steel (heavy duty corrosion protection), whereby paint and zinc coatings are measured simultaneously and displayed separately.
