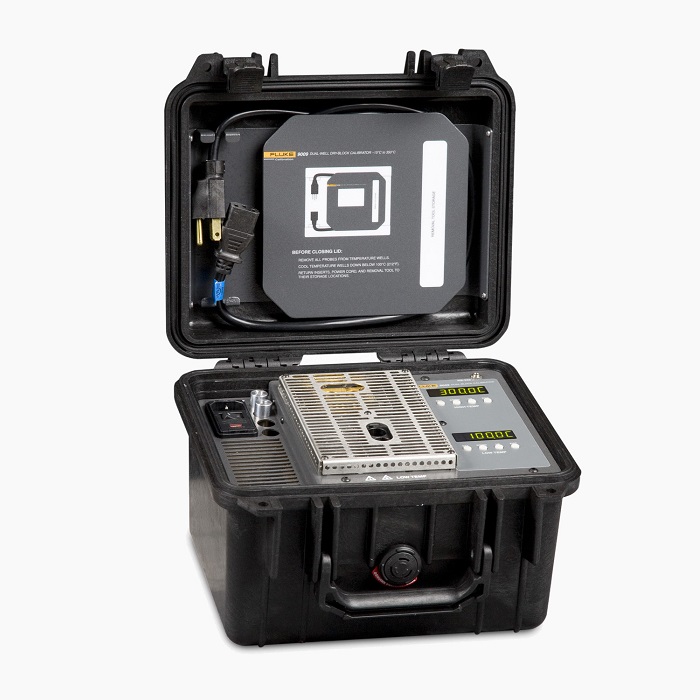

Fluke (Calibration) 9009 産業用デュアルブロック温度計校正器

Cold Block

Range Hot Block 50 °C to 350 °C (122 °F to 662 °F)

Range Cold Bocl –15 °C to 110 °C (5 °F to 230 °F)

Accuracy Hot Block ± 0.6 °C

Accuracy Cold Block ± 0.2 °C

Stability ± 0.05 °C

Well-to-Well Uniformity ± 0.1 °C

Display Resolution 0.1 °

Heating Times Hot block 30 minutes from 25 °C to 350 °C

Cooling Times Hot block 40 minutes from 350 °C to 100 °C

Heating Times Cold block 15 minutes from 25 °C to 110 °C

Cooling Times Cold block 16 minutes from 25 °C to –15 °C

Stabilization Times 8 minutes

Well Depth 4" (102 mm)

Removable Inserts Two 6.4 mm (1/4 in) and two 4.8 mm (3/16 in) inserts included; see Ordering Information for other available inserts

Computer Interface RS-232 interface

Power 115 V ac (± 10 %), 3 A, or

230 V ac (± 10 %), 2 A, specify, 50/60 Hz, 280 W

Size (HxWxD) 178 x 267 x 248 mm (7 x 10.5 x 9.75 in)

Weight 4.5 kg (10 lb)

NIST-Traceable Calibration Hot block Data at 50 °C, 100 °C, 150 °C, 200 °C, 250 °C, 300 °C, and 350 °C

NIST-Traceable Calibration Cold block Data at –8 °C, 0 °C, 25 °C, 50 °C, 75 °C, 100 °C, and 110 °C
