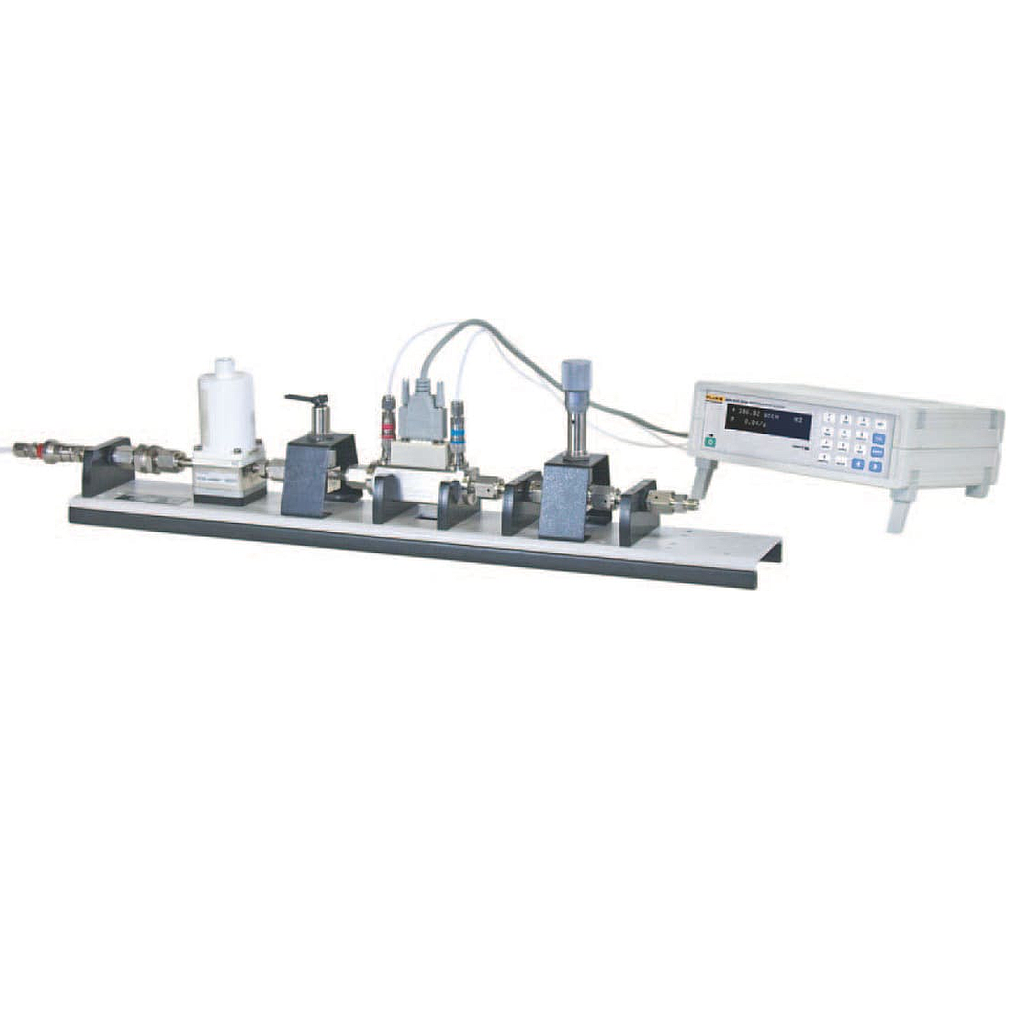

Fluke 5142-10K molbox RFMガス流量校正器キット（0.1〜10 slm（l / min））

Gas calibration included Nitrogen (N2), Air
Maximum working measurement line pressure: 600 kPa (87 psi) absolute
Range: 0.1 to 10 slm (1 slm = 1 l/min)
accuracy: ±0.5%
Power requirements: 85 V ac to 264 V ac, 47 Hz to 440 Hz, 18 VA max consumption
Vibration: Meets MIL-T-28800D
molbox RFM weight and dimensions: 2.55 kg (5.6 lb) max, 8 cm x 22.5 cm x 20 cm (3.1 in x 8.9 in x 7.9 in) approx
molstic with molbloc weight and dimensions (max): 9 kg (20 lb), 19 cm x 81.28 cm x 15.25 cm (7.5 in x 32 in x 6 in) approx
Supply gas required: 99.998% pure N2 or Air regulated to 90 psig (600 kPa)
Note: a fine pressure regulator is included, but an additional regulator (not included) may be required to reduce pressure supplied to the 514X kit to approximately 90 psi
Gas calculations reported: Nitrogen (N2), Air, Argon (Ar), Carbon Monoxide (CO), Helium (He), Oxygen (O2), Carbon Dioxide (CO2), Carbon Tetrafluoride (CF4), Ethane (C2<;/sub>H6), Ethylene
(C2H4), Fluoroform (CHF3), Hexafluoroethane (C2F6), Hydrogen (H2), Methane (CH4), Nitrous Oxide (N2O), Propane (C3H8), Sulfur Hexafluoride (SF6)
Flow connections for gas supply and device under test: 1/4 in tube with adapters included for 1/4 in NOT and 1/4 in BSP
Include:
    1 - molbox RFM reference flow monitor, including:
        Quick connect molbloc pressure lines
        Molbloc communication cable
        Line cord
        User manual
    1 -molbloc-L laminar flow element
    1 -molstic-L mounting system, including:
        Fine pressure regulator
        Isolation valve
        Precise flow metering valve
    1 - Tubing and adaptors to connect gas supply and device under test, including:
        1/4 in tube fitting
        1/4 in NPT female
        1/4 in NPT male
        1/8 in NPT male
        1/4 in BSP male
