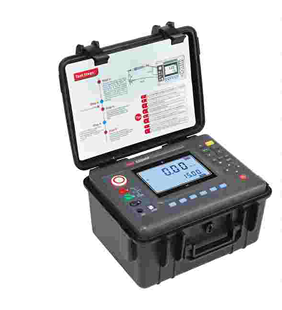

FUZRR ES3045 デジタル絶縁抵抗計 (0.01ΜΩ ~ 10ΤΩ)
生産者: FUZRR Model: ES3045 - 連絡先
Rated applied voltage: 100; 250; 500; 1000; 2500; 5KV
Resistance limit range: 0.01ΜΩ ~ 10ΤΩ
Resolution: 0.01ΜΩ
Accuracy: ±3%rdg±5dgt
Output short-circuitt current: ≥6mA
Function: Insulation resistance test, voltage test, current test, capacitance test
Basic condition: 23°C±5°C, below 75%rh
DC voltage range: 0.1~1000V, accuracy: ±1.5%rdg±3dgt, Resolution: 0.1V
AC voltage range: 0.1~750V, accuracy: ±1.5%rdg±3dgt, Resolution: 0.1V
DC current measurement: 0.01nA-6mA, accuracy: ±5.0%rdg±2dg, Resolution: 0.01nA
Capacitance test: 10nF~50uF, accuracy: ±10%rdg±5dg, Resolution: 10nF
Power: 12V rechargeable battery
Instrument size: 240mm (L)*188mm (W)*85mm (H)
Instrument weight: 2720g(including battery)
