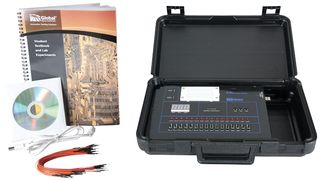

Global DL-020 ポータブルアドバンストロジックデザイントレーナー
生産者: Global Specialties Model: DL-020 起源: Taiwan - 連絡先
Not gates: 12
2-Input AND gate: 12
4-Input AND gate: 8
2-Input OR gate: 8
4-Input OR gate: 8
2-Input XOR gate: 12
2-Input NAND gate 8
D Flip-flop 4
4-to-1 Multiplexer 4
LEDs: 8
7-Segment LED display: 1
Slide switch: 8
Push Button switch: 3
270 tie point Bread Board: Yes
Vcc & GND tie points: Yes
Hook up wire 100pcs: Yes
9 V Power Supply: Yes
DL Manual: Yes
Regulated 5V supply Yes
Clock Switch between 1Hz and 20Hz
Dimensions: Width 13.5 in x Length 8.5 in x Height 3.5 in
Weight: 3.40 lbs
