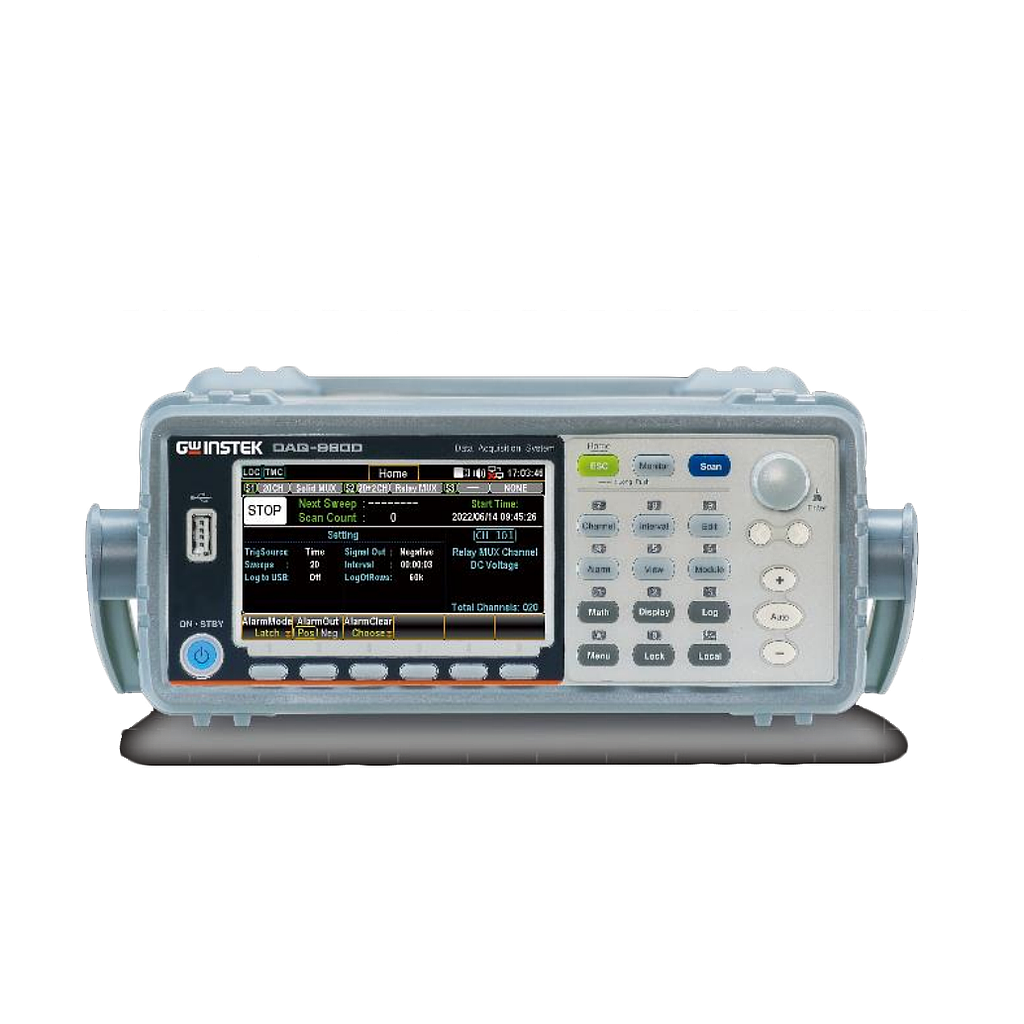

GW INSTEK DAQ-9600 20チャンネルユニバーサルマルチプレクサ(ソリッドステートリレー) (20 channel)

DISPLAY: 4.3" Color TFT LCD

SLOT: 3

Sample Rate: 10k SPS (max.)

Internal memory: 100k_Sample (nonvolatile)

Measurement Characteristics:

DC Voltage: Range: 100mV to 600V; Resolution: 0.1µV to 1mV; Accuracy: 0.0035%

AC Voltage: Range:  100mV to 300V; Resolution:  0.1µV to 1mV; Accuracy:  0.05%

Resistance: Range:  100 Ω to 1000 MΩ; Resolution:  0.1 mΩ to 1000 Ω; Accuracy:  0.01%

Frequency: Range:  3Hz to 300kHz; Accuracy:  0.01%

DC Current: Range:  1µA to 2A; Resolution:  1pA to 1µA; Accuracy:  0.05%

AC Current: Range:  100µA to 2A; Resolution: 100pA to 1µA; Accuracy:  0.10%

Capacitance: Range:  1nF to 100µF; Resolution:  0.0001nF to 0.01µF; Accuracy:  2%

Temperature (TC): Range: -200 ºC to 1820 ºC; Resolution:  0.002 ºC to 0.01 ºC; Accuracy:  0.2 ºC

Temperature (TM): Range: -80 ºC to 150 ºC; Resolution:  0.01 ºC; Accuracy:  0.01 ºC

Temperature (RTD): Range:  -200 ºC to 600 ºC; Resolution:  0.002 ºC; Accuracy:  0.06 ºC

General Information

USB storage : Available

Interface Digital:  I/O, LAN and USB host/device

Optional Interface:  mini GPIB

Power Source: AC 100V/120V/220V/240V±10%

Dimensions & Weight: 267(W) x 107(H) x 380 (D) mm; Approx. 4.5kg
