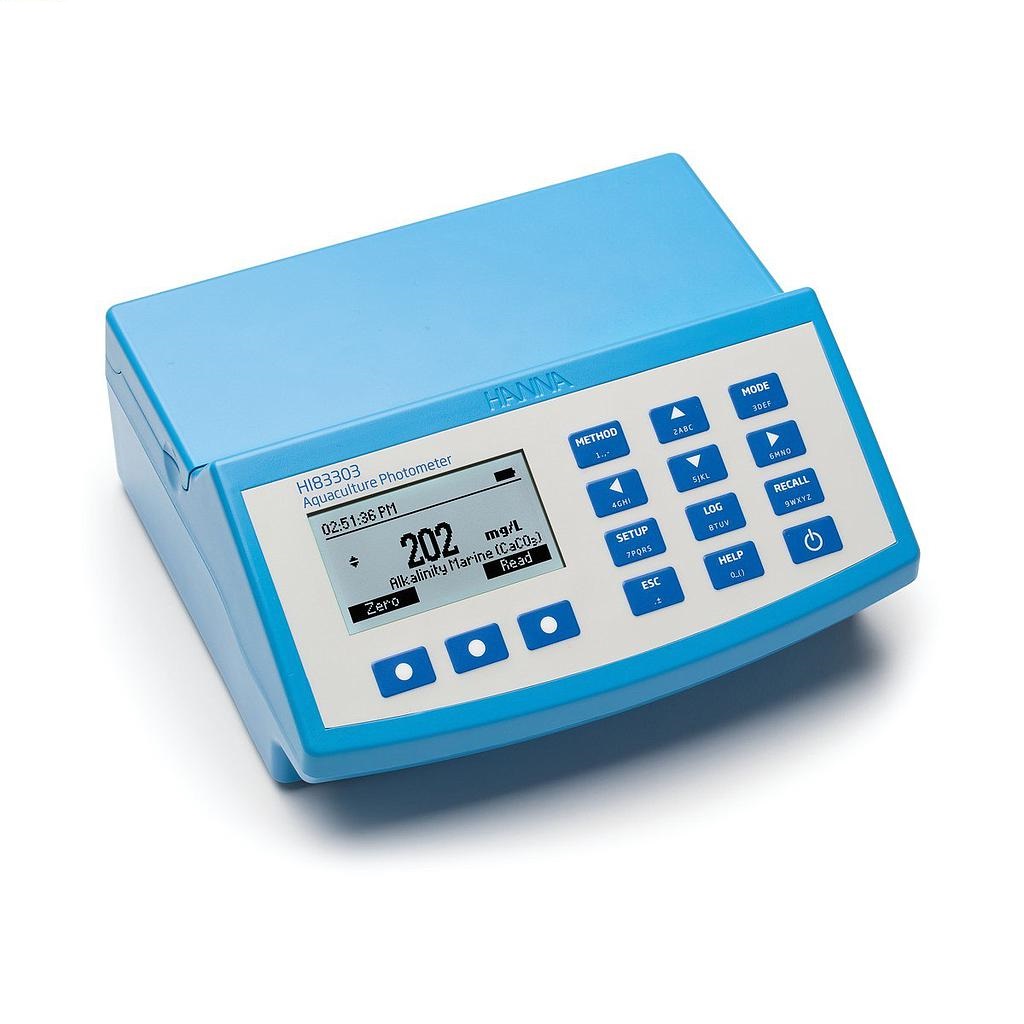

Hanna HI83303-02 水産養殖光度メータ-

Wavelength Accuracy: ±1 nm
Light Source: 5 LEDs with 420 nm, 466 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters
Spectral bandwidth: 8 nm
Input Channels : 1 pH electrode input and 5 photometer wavelengths
pH Electrode: digital pH electrode (not included)
Logging Type: log on demand with user name and sample ID optional input
Logging Memory: 1000 readings
Connectivity: USB-A host for flash drive; micro-USB-B for power and computer connectivity
GLP: calibration data for connected pH electrode
Display: 128 x 64 pixel LCD with backlight
Battery Type / Life: 3.7 VDC Li-polymer rechargeable battery / >500 photometric measurements or 50 hours of continuous pH measurement
Power Supply: 5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included)
Environment: 0 to 50.0 oC (32 to 122.0 oF); 0 to 95% RH, non-condensing
Dimensions: 206 x 177 x 97 mm (8.1 x 7.0 x 3.8")
Weight : 1.0 kg (2.2 lbs.)
Photometer/Colorimeter Light Detector: silicon photodetector
Cuvette Type : round, 24.6 mm
Number of Methods : 128 max.
Ordering Information: HI83303 is supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual.

Details

Manual

Parameter Range Resolution

Accuracy(at 25 °C)

Method Wavelength Reagent Code
Absorbance 0.000 to 4.000 Abs 0.001 Abs +/-0.003Abs @ 1.000 Abs
Alkalinity 0 to 500 mg/L (as CaCO3 ) 1 mg/L ±5 mg/L ±5% of reading Colorimetric Method 610 nm HI775-26
Alkalinity, Marine 0 to 300 mg/L (as CaCO3 ) 1 mg/L ±5 mg/L ±5% of reading Colorimetric Method 610 nm HI755-26
Ammonia, Low Range 0.00 to 3.00 mg/L (as NH3 -N) 0.01 mg/L ±0.04 mg/L ±4% of reading Adaptation of the ASTM Manual of Water and Environmental Technology, D1426 Nessler method. 420 nm HI93700-01
Ammonia, Medium Range  0.00 to10.00 mg/L (as NH3 -N) 0.01 mg/L ±0.05 mg/L ±5% of reading Adaptation of the ASTM Manual of Water and Environmental Technology, D1426, Nessler method 420 nm HI93715-01
Ammonia, High Range  0.0 to 100.0 mg/L (as NH3 -N) 0.1 mg/L ±0.5 mg/L ±5% of reading Adaptation of the ASTM Manual of Water and Environmental Technology, D1426, Nessler method 420 nm HI93733-01
Calcium 0 to 400 mg/L (as Ca2+)  1 mg/L  ±10 mg/L ±5% of reading  Adaptation of the Oxalate method 466nm  HI937521-01
Calcium, Marine  200 to 600 mg/L (as Ca2+)  1 mg/L  ±6% of reading  Adaptation of the Zincon method 610 nm  HI758-26
Chlorine, Free  0.00 to 5.00 mg/L (as Cl2 )  0.01 mg/L  ±0.03 mg/L ±3% of reading  Adaptation of the EPA DPD method 330.5 525 nm  HI93701-01
Chlorine, Total  0.00 to 5.00 mg/L (as Cl2 )  0.01 mg/L  ±0.03 mg/L ±3% of reading  Adaptation of the EPA DPD method 330.5  525 nm HI93711-01
Copper, Low Range  0.000 to 1.500 mg/L (as Cu)  0.001 mg/L  ±0.010 mg/L ±5% of reading  Adaptation of the EPA method 575 nm  HI95747-01
Copper, High Range  0.00 to 5.00 mg/L (as Cu)  0.01 mg/L  ±0.02 mg/L ±4% of reading  Adaptation of the EPA method  575 nm HI93702-01
Nitrate  0.0 to 30.0 mg/L (as NO3 - N)  0.1 mg/L  ±0.5 mg/L ±10% of reading  Adaptation of the cadmium reduction method 525 nm  HI93728-01
Nitrite, Marine Ultra Low Range  0 to 200 µg/L (as N02-N)  1 µg/L  ±10 µg/L ±4% of reading  Adaptation of the EPA Diazotization method 354.1  466 nm HI764-25
Nitrite, Low Range  0 to 600 µg/L (as NO2-N)  1 µg/L  ±20 µg/L ±4% of reading  Adaptation of the EPA Diazotization method 354.1  466 nm HI93707-01
Nitrite, High Range  0 to 150 mg/L (as NO2-)  1 mg/L  ±4 mg/L ±4% of reading  Adaptation of the Ferrous Sulfate method  575 nm HI93708-01
Oxygen, Dissolved  0.0 to 10.0 mg/L (as O2 )  0.1 mg/L  ±0.4 mg/L ±3% of reading  Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Azide modified Winkler method  420 nm HI93732-01
pH  6.5 to 8.5 pH  0.1 pH  ±0.1 pH  Adaptation of the Phenol Red method  525 nm HI93710-01
Phosphate, Marine Ultr Low Range  0 to 200 µg/L (as P)  1 µg/L  ±5 µg/L ±5% of reading  Adaptation of the Standard Methods for the Examination of Water and Wastewater, 20th edition, Ascorbic Acid method  610 nm HI736-25
Phosphate, Low Range  0.00 to 2.50 mg/L (as PO4 3-)  0.01 mg/L  ±0.04 mg/L ±4% of reading  Adaptation of the Ascorbic Acid method  610 nm HI93713-01
Phosphate, High Range  0.0 to 30.0 mg/L (as PO4 3-)  0.1 mg/L  ±1.0 mg/L ±4% of reading  Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Amino Acid method  525 nm HI93717-01
