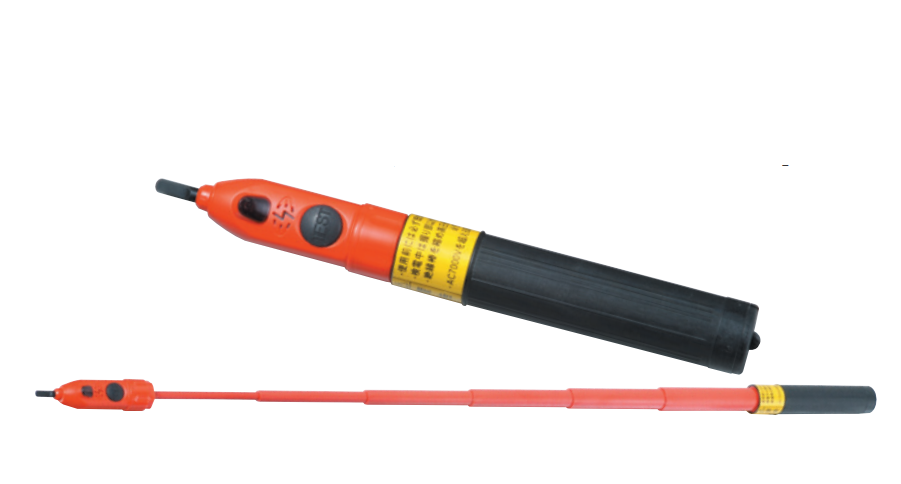

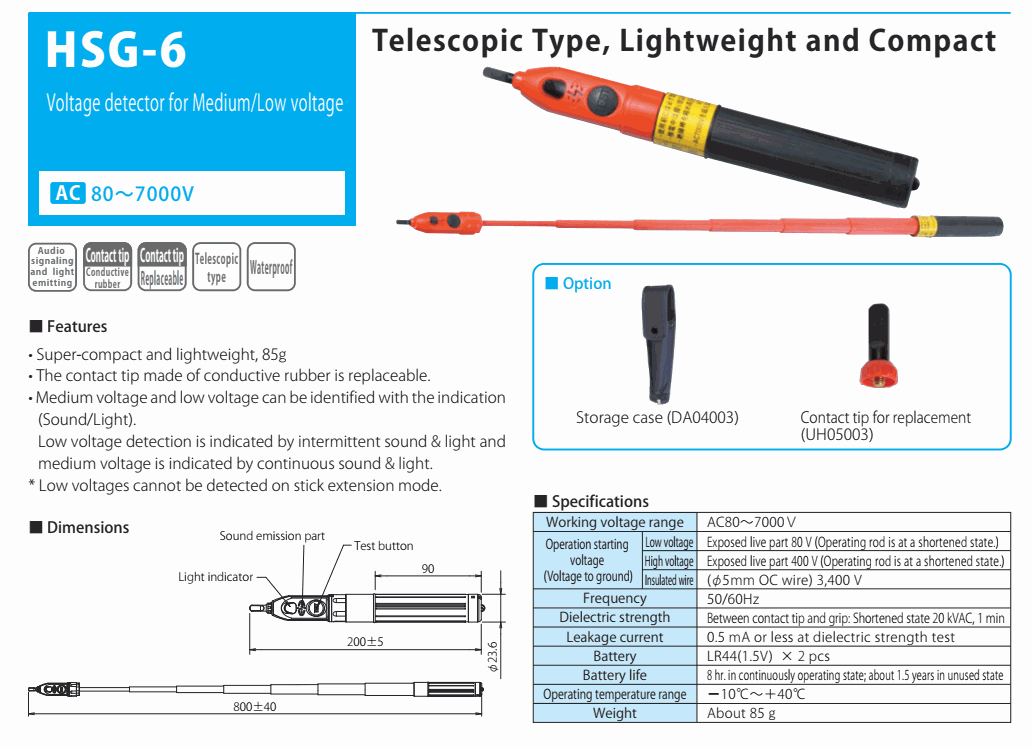

HASEGAWA HSG-6 通信工事 高・低圧用検電器 (AC80～7000V)
生産者: HASEGAWA Model: HSG-6 起源: Japan 品物を保証します: 12 Month - 連絡先
■ Specifications:
Working voltage range: AC80～7000V
Operation starting voltage (Voltage to ground):
Low voltage: Exposed live part 80 V (Operating rod is at a shortened state.)
High voltage: Exposed live part 400 V (Operating rod is at a shortened state.)
Insulated wire: (φ5mm OC wire) 3,400 V
Frequency: 50/60Hz
Dielectric strength: Between contact tip and grip: Shortened state 20 kVAC, 1 min
Leakage current: 0.5 mA or less at dielectric strength test
Battery: LR44(1.5V) × 2 pcs
Battery life: 8 hr. in continuously operating state; about 1.5 years in unused state
Operating temperature range: －10℃～＋40℃
Weight: About 85 g
■ Option: Storage case (DA04003), Contact tip for replacement (UH05003)
■ Features
• Super-compact and lightweight, 85g
• The contact tip made of conductive rubber is replaceable.
• Medium voltage and low voltage can be identified with the indication (Sound/Light).
Low voltage detection is indicated by intermittent sound & light and medium voltage is indicated by continuous sound & light.
