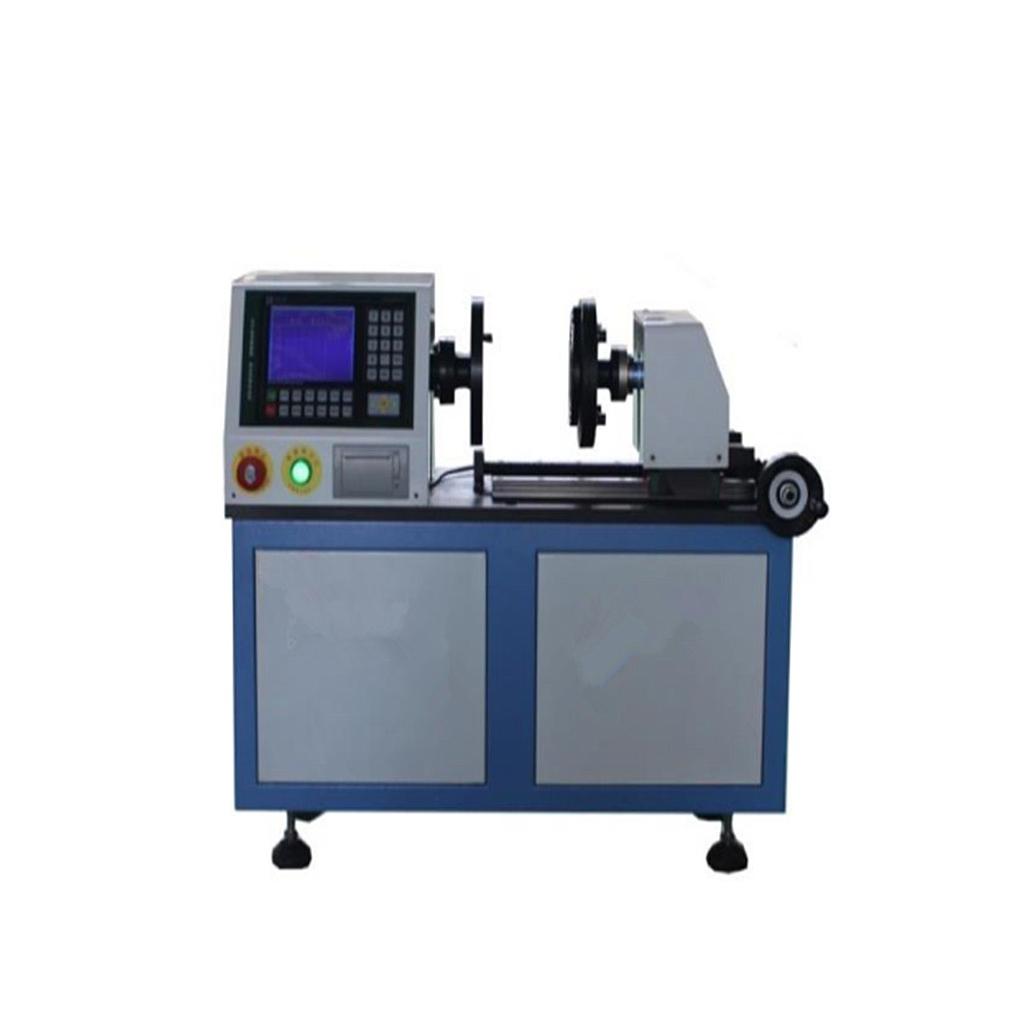

HST NDS-100 自動ばねねじり試験機 (100N.m)
生産者: HST Model: NDS-100 - 連絡先
Application: sed for torsion test of various torsion springs, scroll springs,Flat Spiral Spring and other elastic torsion parts.
Type: Horizontal
Max test torque: 100Nm
Test range: 1%-100%FS
Min torque reading: 0.1Nm
Resolution of torsion angle: 0.1°
Test rotation angle: 0~±360°
Accuracy of testing force: ±1%
Relative error of torque zero: ±0.1%
Maximum height of the sample: 120mm
Distance between the force plate and the torque plate: 0~200mm
Diameter of torsional plate: 120mm
