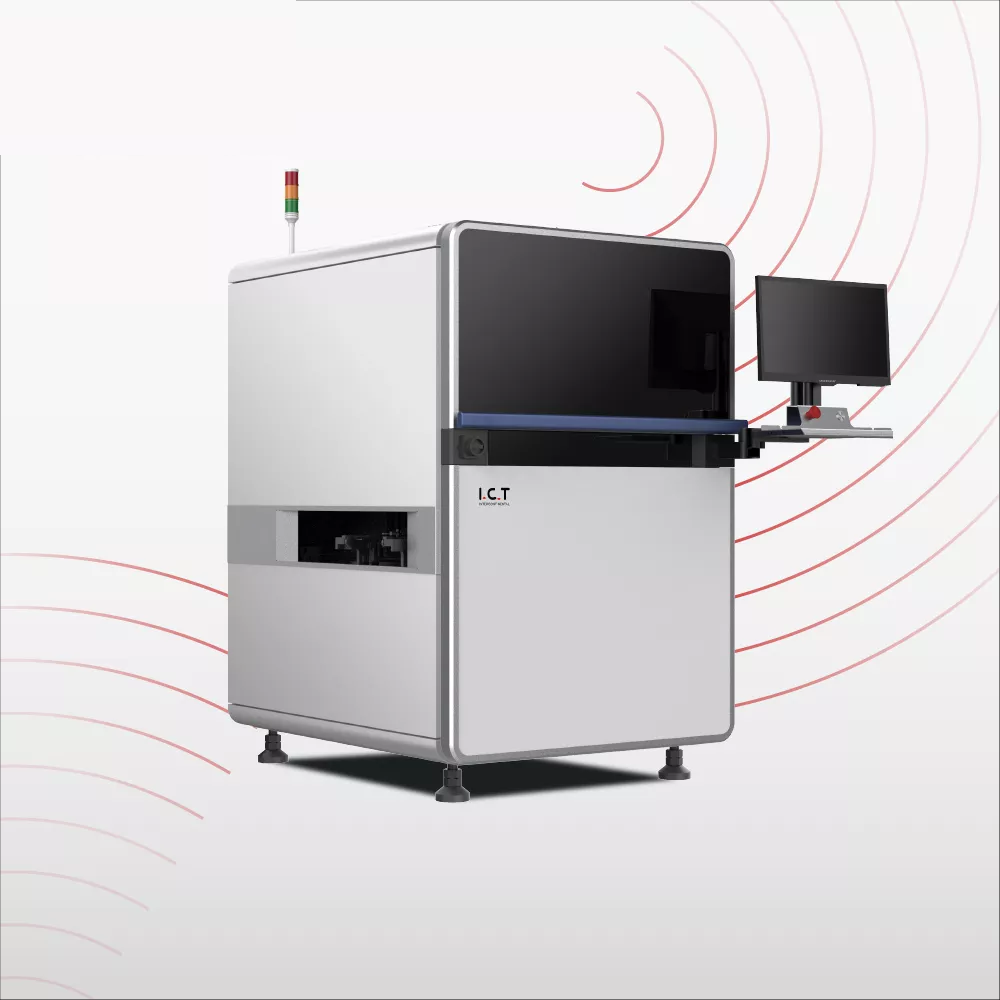

I.C.T I.C.T-AI-5146CW 自動PCB光学検査装置 (0.23 sec/FOV)
生産者: I.C.T Model: I.C.T-AI-5146CW - 連絡先
FOV: 21.5um@52.6*44mm(standard), 15um@36*30mm/12MP:10um@40*30mm, 15um@60*45mm
Resolution: 21.5um(standard) /15um /10um
Camera: Dual side camera 5M
Inspection Speed: 0.23sec/FOV
PCB Height: Top:75mm, Bottom:70mm
PCB Thickness: 0.3 ~ 6.0mm
PCB Edge: 3.0mm
PCB Warpage: ±3.0mm
PCB Weight: Max:10Kg
Conveyor Height: 900±20mm
With Adjustment: Manual & Auto
Conveyor Direction: L ~R or R ~L
Power: AC220 50/60Hz,5A
Rated power: 570W
Communication: SMEMA
Weight: 890Kg
Details
Video
[%youtube id="oi0GHHkFI1M" width="100%" center="1"%]
