IETLAB GenRad 1404シリーズ一次標準コンデンサ

datasheet

The GenRad 1404 Series standard capacitors are the standard of choice in metrology labs, and still used today by standards bodies around the world. These capacitors have been designed as primary reference standards of capacitance with which working standards can be compared.

In combination with an accurately known external resistor, the GenRad 1404 standard capacitors becomes a standard of dissipation factor

All critical parts of the plate assembly are made of Invar for stability and low temperature coefficient. After heat cycling and adjustment, the assembly is mounted in a heavy brass container, which, after evacuation, is filled with dry nitrogen under pressure slightly above atmospheric and sealed. The container is mounted on an aluminum panel and protected by an outer aluminum case. Each capacitor is subjected to a series of temperature cycles to determine hysteresis and temperature coefficients and to stabilize the capacitance

MODELS

GenRad / General Radio 1404-10nF (10.000 pF) Recently Released

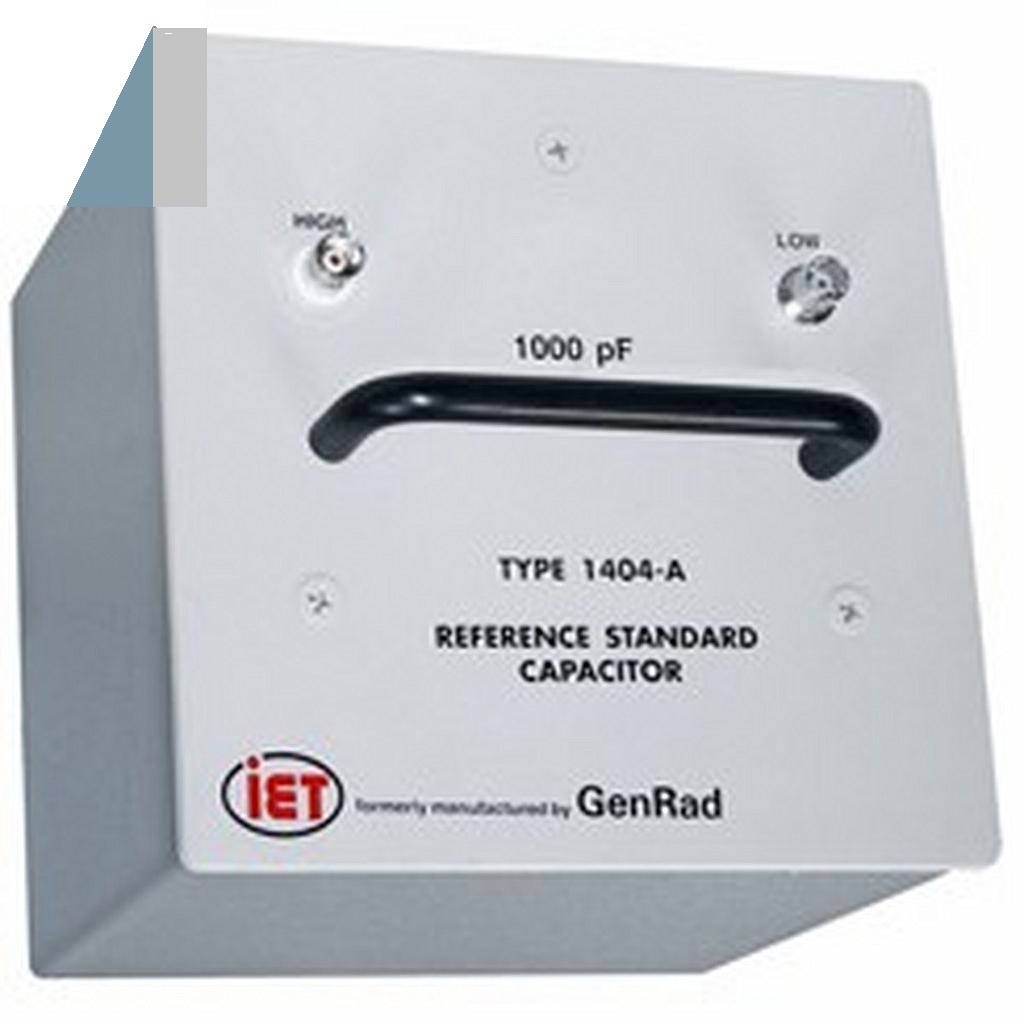

GenRad / General Radio 1404-A (1000 pF) Primary Standard Capacitor
GenRad / General Radio 1404-B (100 pF) Primary Standard Capacitor
GenRad / General Radio 1404-C (10 pF) Primary Standard Capacitor

SPECIFICATIONS

Calibration: A certificate of calibration is supplied with each capacitor, giving the measured direct capacitance at 1 kHz, 30 Vac and 23° ±1°C. The measured value is obtained by a comparison to a precision better than ±1 ppm with working standards whose absolute values are known to an accuracy of ±5 ppm, determined and maintained in terms of reference standards periodically traceable to an SI.

Adjustment Accuracy: The capacitance is adjusted before calibration with an accuracy of ±5 ppm to a capacitance about 5 ppm above the nominal value relative to the capacitance unit maintained by the reference standards.

Temperature Coefficient of Capacitance: A measured value with and accuracy of ±1 ppm/°C is given on the certificate.

Model	Temperature Coefficient
1404-A 1404-B	2 ±2 ppm/°C from -20°C to +65°C
1404-C	5 ±2 ppm/°C from -20°C to +65°C
1404-5 nF 1404-10 nF	4 ±2 ppm/°C from -20°C to +65°C



Temperature Cycling: For temperature cycling over range from -20°C to +65°C , hysteresis (retraceable) is less than 20 ppm at 23°C.

Stability:

Model	Long Term Drift	Max Change with Orientation
1404-A 1404-B 1404-C	less than 20 ppm per year	10 ppm and completely reversible
1404-5 nF 1404-10 nF	less than 40 ppm per year	10 ppm and completely reversible



Dissipation Factor: Less than 10^-5 at 1 kHz.

Residual Impedance:

Model	CH	CL	L
1404-A 1404-B 1404-C	30 pF	28 pF	0.05 µH
1404-5 nF 1404-10 nF	130 pF	127 pF	0.1 µH



Max Voltage:

Model	Maximum Voltage
1404-A 1404-B 1404-C	750 V peak
1404-5 nF 1404-10 nF	100V peak



Terminals: Two BNC coaxial connectors (legacy locking G874 coaxial connectors are available). Outer shell of one connector is ungrounded to permit capacitor to be used with external resistor as a dissipation factor standard.

Mechanical:

Model	Dimensions	Weight
1404-A 1404-B 1404-C	(16.9 cm H x 17.2 cm W x 20.4 cm D                   (6.63" x 6.75" x 8")	3.9 kg 8.5 lb 6.4 kg 14 lb Shipping
1404-5 nF 1404-10 nF	(23 cm W x 23 cm H x 22 cm D) 9" x 9" x 8.5"	16 kg 35 lb 18 kg 40 lb Shipping
