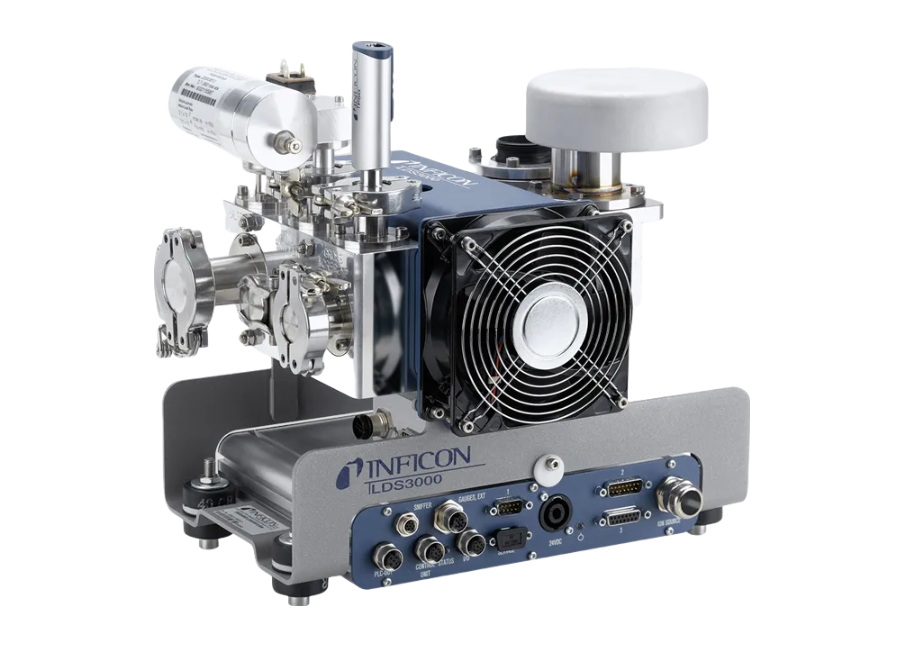

INFICON LDS3000 AQ 蓄積リーク検出器
生産者: INFICON Model: LDS3000 AQ P/N: 560-600 - 連絡先
Minimum detectable leak rate of forming gas or helium: 1 x 10-5 mbar l/s
Measurement range: 5 decades
Test chamber pressure: Atmosphere (standard pressure)
Response time: < 1 s
Detection system: 180° sector field mass spectrometer
Start time: < 3 min
Field buses available: PROFIBUS, PROFINET, DeviceNet, EtherNet/IP
Connections: ISO-KF DN16
Ion source: 2 yttrium/iridium long-life cathodes
Digital inputs/outputs: 10 inputs, 8 outputs (when used with I/O1000 module)
Control input: PLC compatible (max. 35 V)
Recorder output lin/log: 0 – 10 V
Serial interface: RS232, RS485 or fieldbus systems
Dimensions (L x W x H): 330 x 240 x 280 mm
