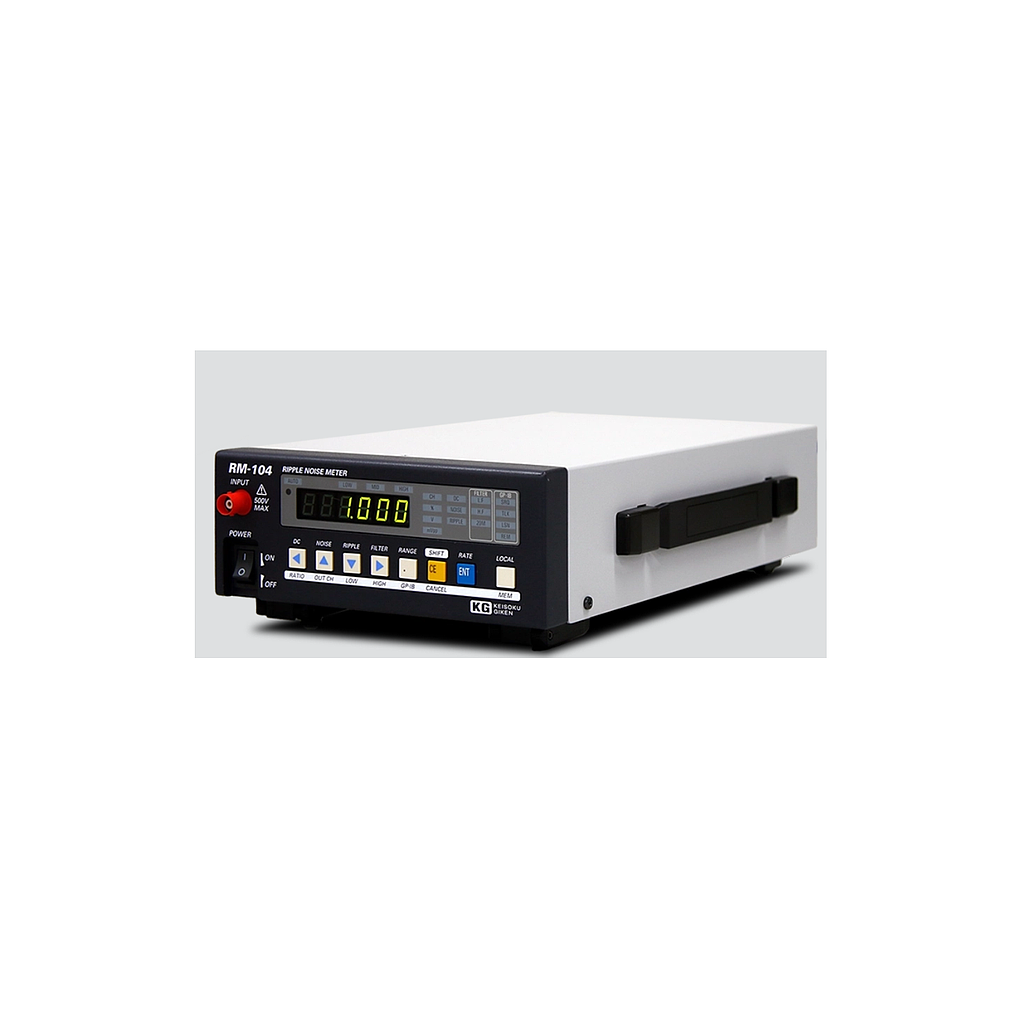

KEISOKU GIKEN RM-104 Ripple Noise Meter
生産者: KEISOKU GIKEN Model: RM-104 - 連絡先
Voltage measurement
DC voltage measurement
Voltage range: ±6.0000V/ ±60.000V/ ±500.00V
Measurement resolution: 0.1 mV/ 1.0 mV/ 10.0 mV
Measurement auto range range: -6.0000 V to 6.0000 V/ -60.000V to -5.600V/ -500.00V to -56.00V/ 5.600V to 60.000V/ 56.00V to 500.00V
Measurement accuracy: ±0.025% of rdg. ±0.025% of fs .
Maximum input voltage: ±500V
Measurement time: 90msec or less (Fast Mode) /250msec or less (Slow Mode)
Ripple noise voltage measurement
THRU: 50Hz~100MHz
LPF: 50Hz~2kHz
HPF: 2 kHz to 100 MHz
20 MHz band limit: 50Hz~20MHz
