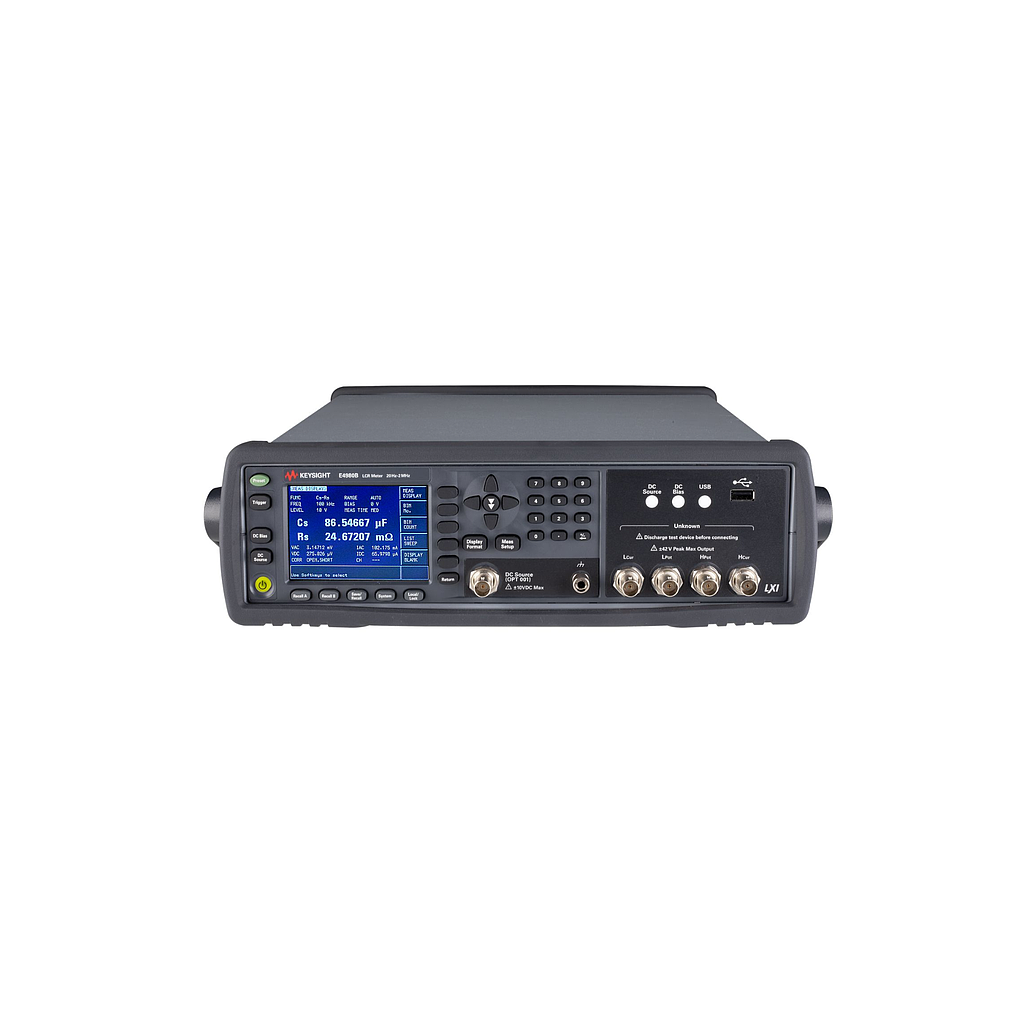

KEYSIGHT E4980BL-032 高精度LCRメーター (20Hz ~ 300 kHz)

Frequency range: 20Hz ~ 300 kHz

Measurement parameters

Cp-D, Cp-Q, Cp-G, Cp-Rp

Cs-D, Cs-Q, Cs-Rs

Lp-D, Lp-Q, Lp-G, Lp-Rp, Lp-RDC

Ls-D, Ls-Q, Ls-Rs, Ls-RDC

R-X

Z-θd, Z-θr

G-B

Y-θd, Y-θr

Test frequencies: 20Hz ~ 300 kHz

Resolution: 0.01 Hz (20 ~ 99.99 Hz), 0.1 Hz (100 ~ 999.9 Hz), 1 Hz (1 ~ 9.999 kHz), 10 Hz (10 ~ 99.99 kHz), 100 Hz (100 ~ 999.9 kHz)

Measurement accuracy: ±0.01%

Test signal level:

Voltage range 0...20 VRMS (≤1 MHz), 0...15 VRMS(>1 MHz);

Current range 0...100 mARMS

Measurement display ranges

Cs, Cp: ±1.000000 aF ~ 999.9999 EF;

Ls, Lp: ±1.000000 aH ~ 999.9999 EH;

D: ±0.000001 ~ 9.999999;

Q: ±0.01 ~ 99999.99;

R, Rs, Rp, X, Z, RDC: ±1.000000 aΩ ~ 999.9999 EΩ; G, B, Y: ±1.000000 aS~ 999.9999 ES;

VDC: ±1.000000 aV ~ 999.9999 EV;

IDC: ±1.000000 aA ~ 999.9999 EA;

θr: ±1.000000 arad ~ 3.141593 rad;

θd: ±0.0001 ~ 180.0000 deg;

Δ%: ±0.0001 ~ 999.9999%

(Note: a -> 1x 10-18, E -> 1x 1018)

Power and DC bias enhancement:  Not Installable

DCR measurement: Equipped by default

Handler interface: Installable

Scanner interface: Installable

Display: LCD, 320x240 (pixels), RGB color

The following items can be displayed: Measurement value, measurement conditions, limit value and judgment result of comparator, list sweep table, self-test message

Interfaces: LAN/Ethernet, USB, GPIB

Dimensions (mm): 375 x 105 x 390; approx. 5.3 kg
