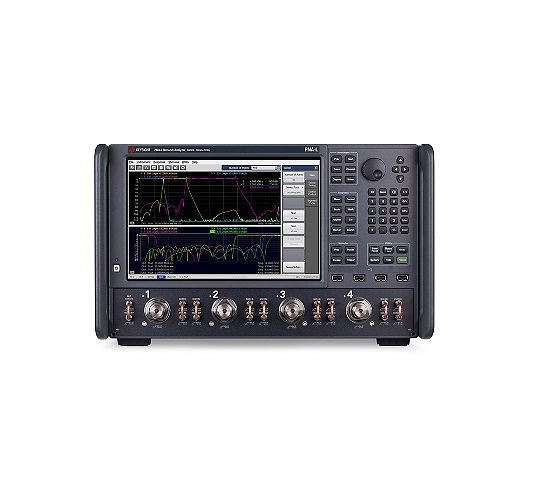

KEYSIGHT N5232B PNA-Lマイクロ波ネットワークアナライザー (300kHz~20GHz)
生産者: KEYSIGHT Model: N5232B P/N: Option 2xx 品物を保証します: 12 Month - 連絡先
• Frequency range: 300kHz to 20GHz
• Dynamic range (dB) at 3/20 GHz at 10 Hz IFBW:
- System: 131–133/111–114
- Direct receiver access: 144/124
• Noise floor (dBm) at 3/20 GHz at 10 Hz IFBW: −120/−106
• Max power at 3/20 GHz (dBm): +11–13/+5–8
• Best trace noise at 10 kHz 1 IFBW Mag (dBrms)/Phase (degrms): 0.012/0.19
• Best speed at 201 point 1sweep, correction off: 5.75 ms (600 kHz IFBW)
• Dimension HxWxD (mm): 267 x 426 x 446
• Weight (kg): 24 kg
Details
- 良質な取り決め
- オリジナル保証
- 宅配便
- 買い取り簡単化
