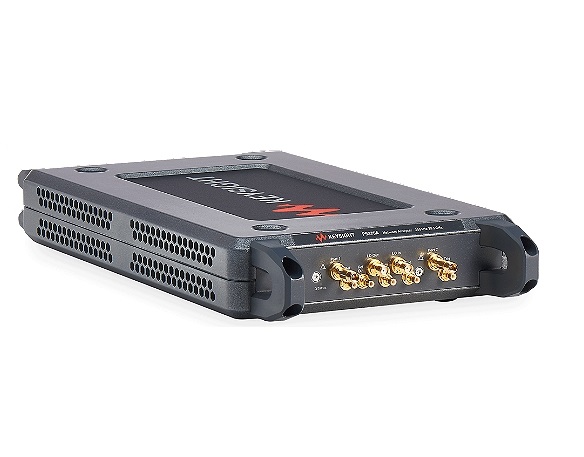

KEYSIGHT P9375A Streamline USBベクトルネットワークアナライザー (300kHz~26.5GHz; 2 ports)
生産者: KEYSIGHT Model: P9375A 品物を保証します: 12 Month - 連絡先
• Frequency: 300 kHz to 26.5 GHz
• Number of Built-In Ports: 2
• Dynamic range: 104dB at > 20 to 24 GHz
• Noise Floor: –98 dB at > 20 to 24 GHz
• Maximum Output Port Power (dBm): +1dbm at > 20 to 24 GHz
• Phase noise: –66 dBc/Hz at > 20 to 26.5 GHz
• High temperature stability: +/-0.020 dB/degree C at > 20 to 26.5 GHz
• PC System Requirement: Win7/10, USB 3.0
• Dimensions / Weight: 176x48x333mm, 1.90kg
• Electrical Power: DC, 15 V, 42 W
• Connector Type: 3.5 mm female, 50 ohm
• Accessories: Main unit, Instruction.
