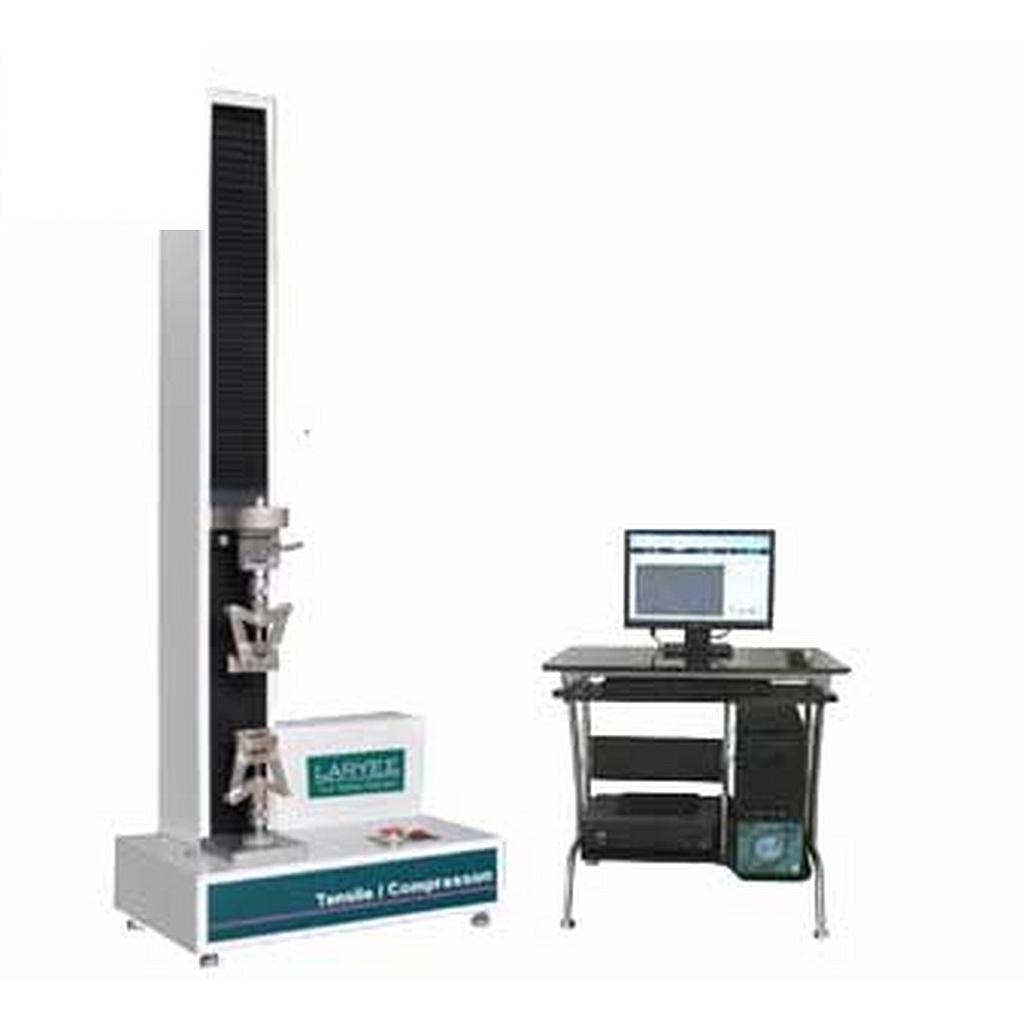

Laryee UE1401 コンピューター制御電子万能テスター (1KN, 0.4%--100%F.S, single type)

- Maximum force(KN): 1
- Machine type: Single
- Accuracy: ≤±0.5%
- Measuring range of force (KN): 0.4%--100%F.S
- Resolution of force: 1/300000 of maximum force
- Accuracy of displacement measuring: ±0.5%
- Resolution of displacement: 0.1 μm
- Accuracy of deformation measuring: ±0.5%
- Speed range of displacement control: 0.01-500mm/min (Max 1000mm/min as special order)
- Speed range of force control: 0.005-5% F.S / S
- Speed range of deformation control: 0.005-5% F.S/S
- Range of constant displacement, force and deformation: 0.5%-100% F.S
- Speed controlling accuracy: ≦±1.0% of the set value
- Valid tension testing space(mm): 800
- Compression testing space(mm): 900
- Valid width between columns(mm):
- Tension Sample
+ Clamping (mm): Flat grips: 0~20
+ Round grips: /
- Power supply: 1P~220V, 1-3 kW, 50/60Hz
- Working environment: Room temperature: 10℃~40℃, relative humidity: ≤90%
- Over Dimension without PC table (mm): 600×420×1800
- Weight(Kg): 300kg

Standard Accessories:
Wedge Tension, Compression Plate, 3-Points bending accessories; Encoder installed; Load cell installed; Servo motor
and controller built in; Extensometer; DSP PCI Control card; Installation tools; PC and Printer.

Optional Accessories:
Wedge Tension 1
Wedge Tension 2
Pneumatic Tension
Flat Tension
Film Tension
Opposite Peeling
Thread Tension 1
Thread Tension 2
Bolt Tension
Nail Withdraw
3-Points Bend
Shear
4-Points Bend
Compression Plate
Wood Shear
Wood Bending
