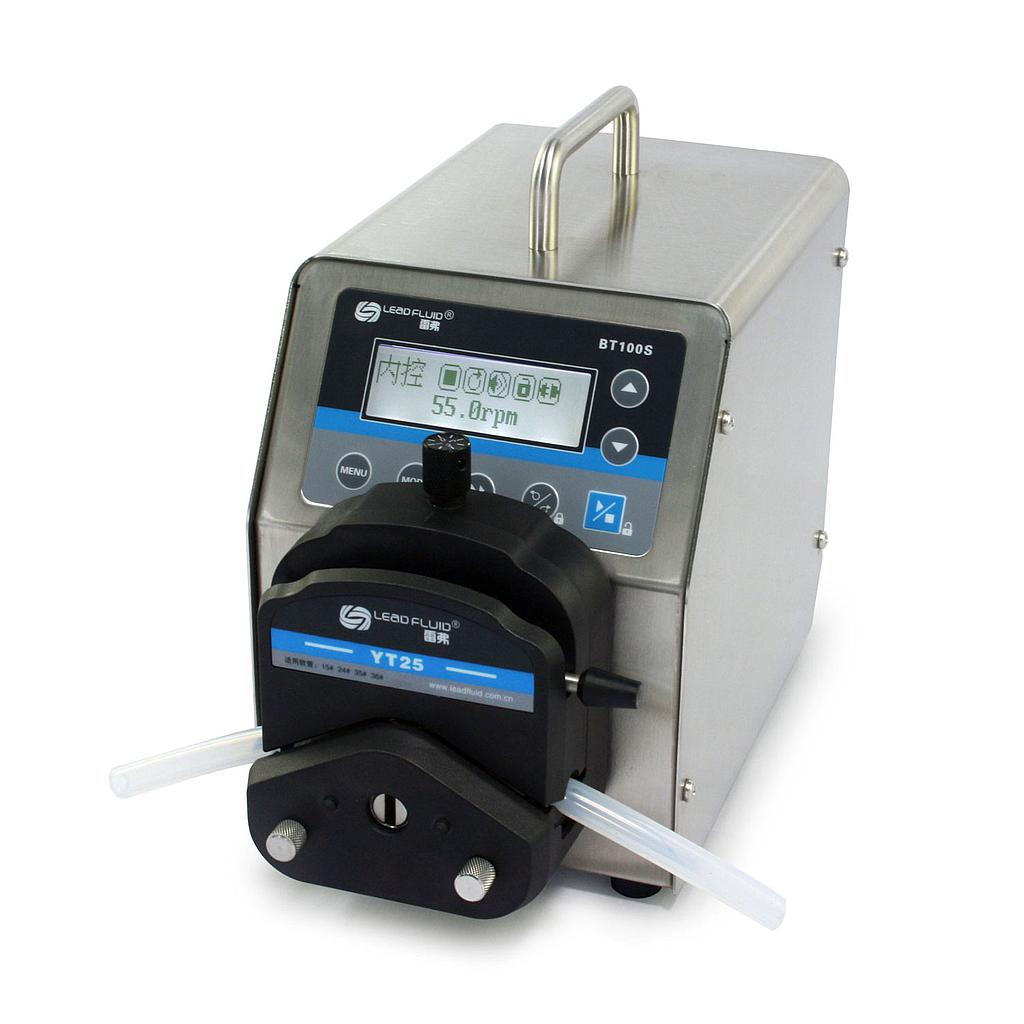

Leadfluid BT100S マイクロフロー可変速ペリスタルティックポンプ (0.16～720mL/min, 1 CH)
生産者: Leadfluid Model: BT100S P/N: BT100S(YT25) 起源: China 品物を保証します: 12 Month - 連絡先
Specifications
Flow range: 0.16～720 mL/min
Speed range: 0.1-150 rpm
Speed accuracy: 0.2%
Speed resolution: 0.1-100 rpm, 0.1 rpm resolution; 100-150 rpm, 1 rpm resolution
Power supply: AC 100-240V, 50Hz/60Hz
Power consumption: < 40W
External logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard); 0-10V, 4-20mA (optional)
External communication interface: MODBUS RS485
Ambient temperature: 0-40 °C
Relative humidity: < 80%
IP grade: IP31
Dimension (L x W x H): 264 x 150 x 270 mm (10.39 x 5.91 x 10.63 inch)
Weight: 0.8 kg (1.8 lbs)
Details
| Drive type | Pump head | Ch | Tubing size (mm) | Flow rate per channel (mL/min) |
| BT100S | DG6-1 (6rollers) | 1 | Wall:0.8-1, ID:≤3.17 | 0.0002-49 |
| DG10-1 (10rollers) | 1 | Wall:0.8-1, ID:≤3.17 | 0.0001-41 | |
| DG6-2 (6rollers) | 2 | Wall:0.8-1, ID:≤3.17 | 0.0001-49 | |
| DG10-2 (10rollers) | 2 | Wall:0.8-1, ID:≤3.17 | 0.0001-41 | |
| DG6-4 (6rollers) | 4 | Wall:0.8-1, ID:≤3.17 | 0.0002-49 | |
| DG10-4 (10rollers) | 4 | Wall:0.8-1, ID:≤3.17 | 0.0001-41 | |
| DT10-18 | 1 | 13# 14# , Wall: 0.8-1, ID:≤3.17 | 0.0002-82 | |
| DT10-28 | 2 | 13# 14# , Wall: 0.8-1, ID:≤3.17 | 0.0002-82 | |
| DT10-48 | 4 | 13# 14# , Wall: 0.8-1, ID:≤3.17 | 0.0002-82 | |
| YZ15 | 1 | 13# 14# 16# 19# 25# 17#18# | 0.006-570 | |
| YZ25 | 1 | 15# 24# | 0.16-420 | |
| 2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17#18# | 0.006-570 | |
| 2 x YZ25 | 2 | 15# 24# | 0.16-420 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17#18# | 0.006-570 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.17-720 | |
| 2 x YT15 | 2 | 13# 14# 16# 19# 25# 17#18# | 0.006-570 | |
| 2 x YT25 | 2 | 15# 24# 35# 36# | 0.17-720 |
