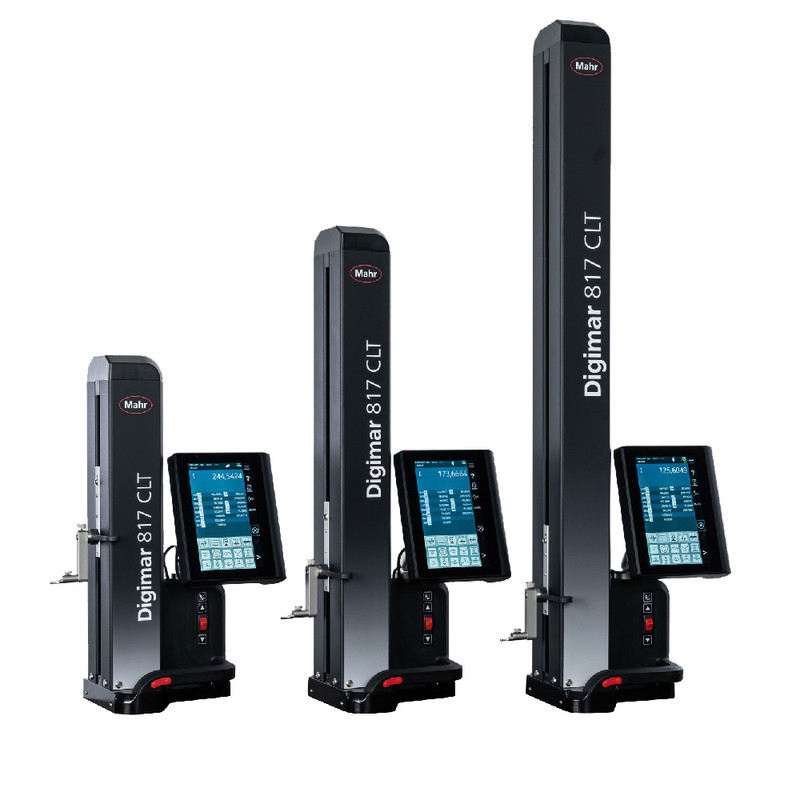

Mahr 4429602 デジタルハイトゲージ (0–1000 mm)
生産者: Mahr Model: 4429602 - 連絡先
Measuring range: 0 – 1000 mm
Extended application range of: 170 mm
Extended application range up to: 1170 mm
Resolution: 0.01 mm, 0.005 mm, 0.001 mm, 0.0005 mm, 0.0001 mm; .001”, .0005”, .0001”, .00005”, .00001”
Error limit: (1.8 + L/600) L in mm
Repeatability planes: 0.5 μm
Repeatability bores: 1 μm
Perpendicularity deviation: 10 μm
Operating time max.: 14 h
Measuring force: 1.0 +/- 0.2 N
Rel. humidity non-condensing: 65 %
Working temperature: 20 °C
Operating temperature: 10 – 40 °C
Product weight: 29 kg
Data interface: USB, Wireless
Standard: Factory standard
Details
